InfiRay Outdoor


  • Sale
  • Regular price $1,799.00

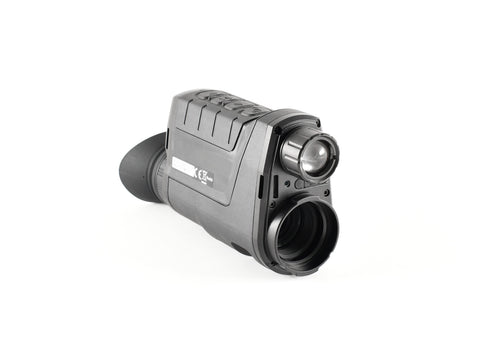

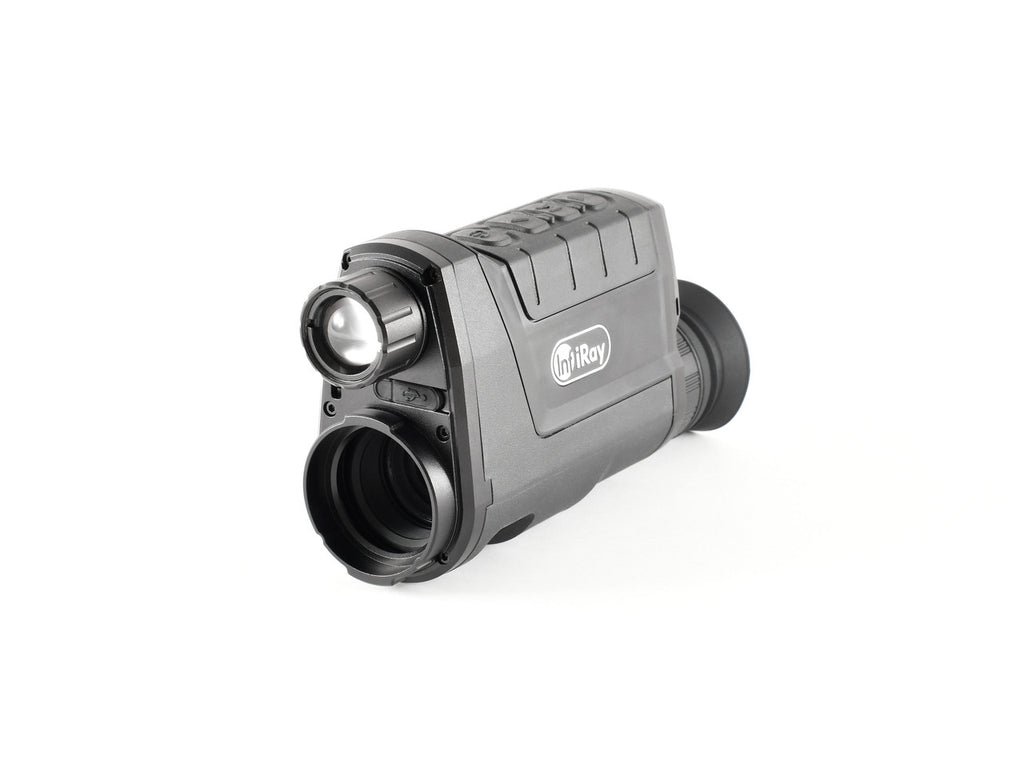

InfiRay Cabin Series Thermal Helmet Mountable Monocular

The InfiRay Outdoor Cabin Series is a compact and powerful optic that operates easily with one hand. The CABIN is available with multiple lens options and its 50Hz 12 μm Micro II sensor featuring InfiRay’s next generation MATRIX III processing ensures an unmatched viewing experience on it’s HD display. Standard features of the Cabin Series include a quick focus F/1.0 lens, stadiametric rangefinder, image and video capture, wireless connectivity, picture in-picture and an LED flashlight to guarantee you have everything you’ll need in the palm of your hand.

  • iRay Micro II Core
  • Multiple Image Modes
  • Picture-In-Picture
  • Laser Pointer
  • Lightweight

Package includes: Thermal Monocular, Eye Cup, Lens Cap, Lanyard, Video/Power USB-C Cable, Battery Recharger,  User Manual

Resolution 384x288 384x288
Pixel Size 12 micron 12 micron
Frame Rate 50 Hz 50 Hz
Core iRay Micro II 384 iRay Micro II 384
Thermal Sensitivity <50mk <50mk
Objective Lens 19 mm; F1.0 25 mm; F1.0
Optical Magnification 2.0x 2.5x
Digital Zoom 4x, stepped 4x, stepped
Field of View 13.8º x 10.4º 10.5º x 7.9º
Detection Range 1070 yds 1420 yds
Display Type LCOS LCOS
Display Resolution 1280x960 1280x960
Imaging Modes White Hot, Black Hot, Red Hot, Color, Highlight White Hot, Black Hot, Red Hot, Color, Highlight
Reticle Types NA NA
Reticle Colors NA NA
Mounting System NA NA
Picture-In-Picture Yes Yes
Rangefinder Stadiametric Stadiametric
Eye Relief 20mm 20mm
Diopter Range -5 ~ +5 -5 ~ +5
Onboard Recording Video & image Video & image
Wireless Connectivity Video/image via App Video/image via App
Data/Power Connector USB-C USB-C
Power Supply USB-C, IBP-2 Battery USB-C, IBP-2 Battery
Laser Pointer 640 nm: 4.5mW CW 640 nm: 4.5mW CW
Start-Up Time >10 Seconds >10 Seconds
Size 6.49"x1.96"x3.34" 6.49"x1.96"x3.34"
Weight 14.22 oz 14.22 oz
Housing Material ABS, Magnesium ABS, Magnesium
Operating Temperature -4º - 122º F -4º - 122º F
Ingress Protection IP67 IP67
Warranty 5 years 5 years
