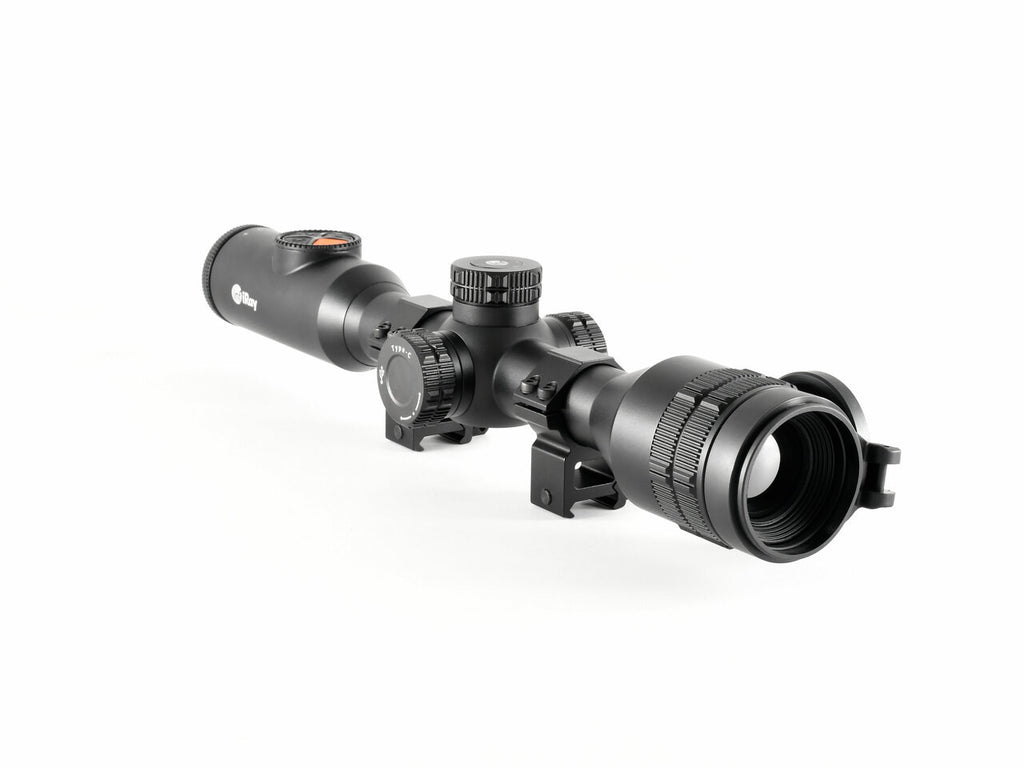

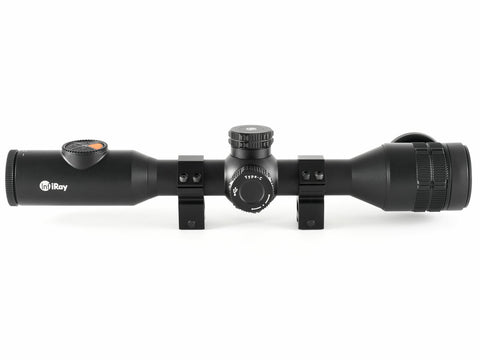

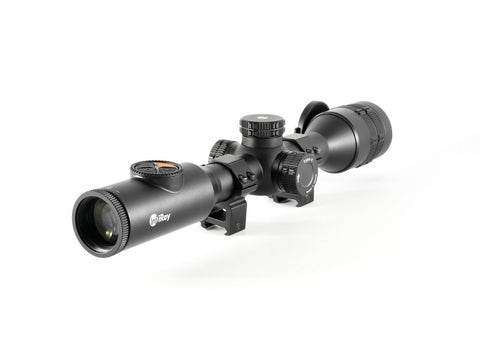

InfiRay BOLT TL35 V2 Thermal Weapon Sight

The InfiRay Outdoor BOLT Series was designed from the ground up for optimal use on bolt action rifles and other platforms that demand flexible mounting options with increased eye relief. The traditional style of a BOLT housing allows for mounting with standard 30mm rings like a typical day scope.

Inside of a BOLT TL35, the image from an InfiRay 50Hz 12 micron Micro II core is displayed on a crystal clear HD display. These components and InfiRay’s proprietary MATRIX III algorithm create an image technically and visually superior to optics with similar specifications. Dual internal 18650 batteries and an optional auxiliary battery provide 10+ hours of run time. The BOLT also comes standard with 16 Gb of internal memory for hours of video capture.

The BOLT features InfiRay Outdoor's innovative new way to control a thermal optic. Unlike other thermal optics with a turret style controller on one side, the BOLT has a large and easy to find metal turret controller on top. This makes operation easier in the dark and completely ambidextrous. The turret controller also has positive and tactile clicks when twisting, and a positive click when pressing in unlike any other thermal scope on the market. Both the aesthetics and the function of the BOLT demonstrate InfiRay Outdoor's mission to combined the traditional style and feel of a day optic and the advanced technology of thermal imaging.

The TL35 features the industry leading InfiRay 12 micron Micro II core with proprietary MATRIX III image processing, but that is just where the high performance begins. Along with the best sensor and software the TL35 uses a set of optics specifically designed for a 12 micron sensor and a low power consumption LCOS HD display. Dual internal batteries power the BOLT for an incredible 10+ hours, and if you need more runtime the BOLT has an additional battery well for an off-the-shelf 18500 or 18650 battery. The BOLT also supports charging the internal batteries through a USB-C connector while in operation so you are never stuck with a dead battery.

The BOLT comes with 16gb of memory for storing 20,000 images or 24 hours of video. Captured videos and images can be easily transferred to your smartphone at lightning speed via app. The WiFi mode also allows for up to 4 connections to the BOLT simultaneously allowing multiple viewers to see the BOLT's thermal image in real time. Audio can also be recorded in the app via your smartphone microphone while connected to the app.

  • iRay Micro II Core
  • 2560x2560 Micro-OLED HD display
  • Picture in Picture
  • 30 mm mounting rings included
  • 32Gb internal memory
  • Aluminum Alloy housing
  • 1000 G shock resistant (300 Win / 7mm Mag)

Package includes: Thermal Weapon Sight, Mount, USB Cable, User Manual

Resolution 382x288
Pixel Size 12 µm
Frame Rate 50 Hz
Image Processing MATRIX III
Core iRay Micro II 384
Objective Lens 35 mm; f/1.1
Optical Magnification 3x
Digital Zoom 4x, stepped
Field of View 7.5º x 5.7º
Detection Range 1750 yds
Display Type LCOS
Display Resolution 1280x960
Imaging Modes 5 - White Hot, Black Hot, Red Hot, Color, Highlight
Reticle Types 7 - (2 Dynamic, 5 Static)
Reticle Colors Black, White, Red, Green
Mounting System 30mm Rings (included)
Picture-In-Picture Yes
Rangefinder Stadiametric
Eye Relief 70mm
Diopter Range -5 to +5
Onboarding Recording Video & Image, no Audio
Wireless Connectivity Video and Image via App.
Data/Power Connector USB-C
Power Supply Built-in battery pack, 8 hrs; 18500 battery (+2 hrs), 18650 battery (+3.5 hrs)
Start-Up Time < 10 Seconds, Instant from Standby
Size 15.74" x 3.34" x 2.95"
Weight 32.87 oz
Housing Material T-6061 Aluminum
Operating Temperature -4º - 122º F
Degree of Protection IP67
Max. Recoil 1000 g/s2 (300 Win. / 7mm Mag)
Warranty 5 years
