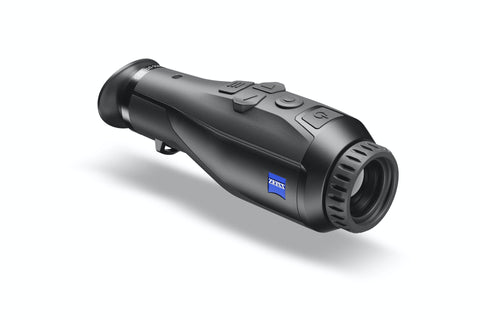

ZEISS Digital DTI 3/35 Thermal Imaging Camera - Demo Unit
DTI 3/35 with a 35mm objective lens, 1350 yd detection range and FOV of 78 ft at 100 yds is especially suitable for use in the open field.
Observing and identifying game in the darkness is particularly exciting and challenging for many hunters. The senses on alert; the body is tense. The perception area is limited to a maximum of 50 to 60 meters. In addition, the darkness offers the game a natural camouflage. However, we humans are very dependent on our sense of sight. The animal world is far superior to us in this regard. For this reason, hunting in the twilight or at night places much higher demands on the observation and target optics than during a day-time hunt.
With the ZEISS DTI 3, ZEISS is launching a thermal imaging camera specially developed for hunting. Whether for game observation and detection or for faster identification - the innovative technology provides you a considerable advantage at night in forests and fields. Heat sources can be reliably identified even over long distances and extensive areas. The excellent optics of the ZEISS DTI 3 deliver detailed and high-contrast images. Using the ZEISS DTI 3 allows game can be clearly identified in the dark and thereby maximizes your hunting success.
Some thermal imaging cameras are only optimized for use with the right hand. Operation with the left hand is therefore very uncomfortable. In addition, the shape of the device often forces the hunter to adjust his grip so that the fingertips rest on the buttons. After hours of stalking through the cold, the hand can quickly get tired and the fingers can become numb. Feeling the buttons can be difficult.
The optimized shape of the ZEISS DTI 3 puts as little strain on the hunter's hands as possible. Whether left-handed or right-handed, the ZEISS DTI 3 can be operated from either side. Furthermore, the shape of the device has been optimized to ensure that the user's fingertips rest naturally on the buttons so that the DTI 3 can also be operated with cold or numb fingers. Thanks to the intelligent positioning of the buttons, each function can be controlled intuitively. This gives the hunter peace of mind, eliminates unnecessary distractions and increases the success of the hunt
Whether for observing and tracking or to more quickly and accurately identify game, the high-quality thermal imaging system ensures that hunters can precisely recognize details even at distances of more than 1,200 meters. As a result, the ZEISS DTI 3/35 gives hunters a considerable advantage when stalking at night or when hunting over long distances from a raised hide in a field.
- COLOR MODES - The ZEISS DTI 3 offers 4 different color modes, so you can choose the setting that best fits your needs. 'Black hot' and 'white hot' deliver images with a high level of contrast. These settings are great for detection, recognition and identification. When observing in areas with vast vegetation, 'red hot' allows for fast detection of heat signatures. The color mode 'rainbow' is ideal identifying the smallest differences in temperature.
- HIGH FRAME RATE - The ZEISS DTI 3 features a display frame rate of 50 Hz. This refers to the number of times per second your monitor can redraw the screen. A higher display frame rate results in decreased flickering of the image, thereby reducing eye strain when stalking for several hours at a time.

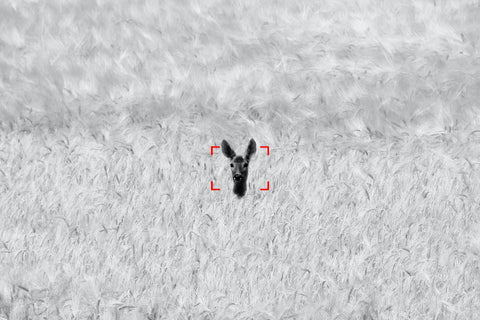

- HOT TRACKING - In 'hot tracking' mode, the warmest source in the image is framed with a red square. Finding heat sources in densely overgrown areas and tracking them is therefore easier.

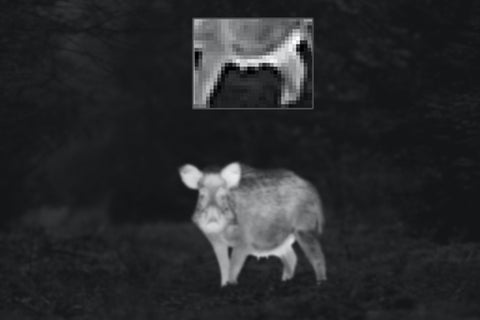

- PICTURE-In-PICTURE (PIP) - The picture-in-picture function allows the zoomed image on the visual image. This feature helps you keep sight of the animal you are observing in zoom mode, even when it makes sudden movements.
- EXTRA LONG BATTERY LIFE - With an impressive long battery life of 10 hours, the DTI 3 models will hold enough charge for two to four hunts. This gives hunters the peace of mind knowing that they have enough power, even if the DTI is not fully charged. The auto shutoff feature conserves battery power - the thermal imaging camera automatically shuts off after 60 minutes of inactivity.
- CONTRAST BOOST - Fog and high humidity significantly degrade the contrast of thermal imaging devices. In these situations, hunters can activate the Contrast Boost feature. This increases the contrasts between light and dark at the edges, making detail visible again.
- EXCELLENT ZEISS OPTICS — In combination with legendary ZEISS optics, the sensor, electronics, and high-resolution HD-LCOS display, the ZEISS DTI 3 Thermal Imaging Camera offers outstanding optical performance at night.
- PERFECT ERGONOMICS — ZEISS ErgoControl, the triangular button layout in combination with the layout of the keys of the ZEISS DTI 3 Thermal Imaging Camera, ensures a natural hand position with the fingertips resting on the controls.
- PRECISE ZOOM — The ZEISS DTI 3 Thermal Imaging Camera provides the perfect combination of magnification and detail recognition. By utilizing the 0.5x zoom increments, you can quickly switch between the individual magnification levels.
- THE ZEISS HUNTING APP — The ZEISS DTI 3 Thermal Imaging Camera can be connected to the ZEISS Hunting App via wireless LAN connection. Photos and videos can be conveniently managed and shared, or even live streamed.
- IN THE BOX — DTI 3 thermal imaging camera, carrying strap, carrying case, cleaning cloth, neck strap for carrying case, USB cable and charger.
DTI 3/35 | |
Sensor resolution | 384 x 288 px |
Sensor pixel pitch | 17 µm |
Image frequency | 50 Hz |
Display resolution | 1280 x 960 px |
Display type | LCOS |
Focal length | 35 mm - f/1.0 |
Thermal sensitivity (NETD) | ≤50mk |
Detection range | 1,350 yds |
Optical magnification | 2.5 x |
Maximum digital zoom | 4 x |
Zoom increments | In 0.5x from 1.0x to 4.0x |
Lens field of view at 100 yds | Horizontal: 57 ft |
Objective viewing angle | 10.7° x 8° |
Electronic interfaces |
USB: charging + data transfer; WLAN: data transfer |
Battery | Lithium-ion |
Battery life | 10 hours |
Internal memory | 15 GB |
Video/image/live-streaming feature | Yes |
WLAN frequency | 2.4 GHz |
WLAN standard | IEEE 802.11b/g/n |
Connection with other devices | ZEISS Hunting App or USB |
Waterproof | IP 66 (Protected against heavy rain) |
Operating temperature °C (°F) | -10/+40 (-14/+104) |
Length x width x height (in) | 7.6 x 2.4 x 2.6 |
Weight | 450 g (15.87 oz) |
Neck Strap | Neoprene |
Carry Case | Yes |
Warranty | 2 + 1 years |
