InfiRay Outdoor

MINI

  • Sale
  • Regular price $3,999.00

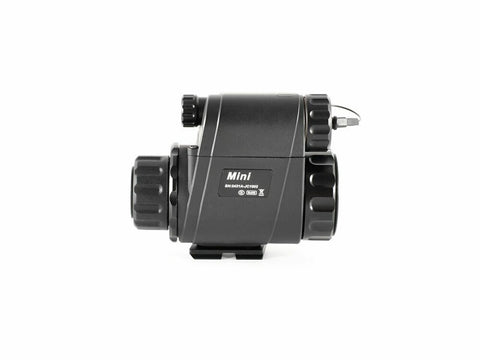

InfiRay Mini Series Thermal Helmet Mountable Monocular

The InfiRay Outdoors Mini Series is a compact and light weight multi-function thermal imager that won't weigh you down. It’s unique design allows for seamless operation as a handheld monocular, or can easily transition to a helmet mount for hands-free use. The Mini Series is powered by a 50Hz 12 um sensor and features next generation MATRIX III processing for an unmatched viewing experience. Standard features of the Mini Series include manual focus lens, video out, HD display, Stadiametric rangefinder and picture-in-picture to guarantee you have everything at your fingertips.

The Mini Series is available in both 640x480 and 384x288 versions. The MH25 features a 640 12μm detector and a 25mm lens to provide detection to 1375 Yards. The ML19 features a 384 17μm detector and a 19mm lens to provide detection to 950 Yards.

Mini Series is operated by an intuitive menu system and user friendly rotary button. This one button operation has positive clicks with each selection and allows for quick and easy operation without having to search for any buttons in the dark, even when wearing gloves.

Flexible Mounting Options and Friendly Operation - For hands-free operation there are 2 mounting points designed to allow for a wide variety of dovetail helmet mounts. The Mini's display icons flip automatically when orientation is flipped.

Power Supply Options - Using the included battery extender the Mini is compatible with CR123A, CR123, 16340, and 16650 batteries. Using 1 16650 the Mini will run for 3 hours, and using the included power cable with a 10,000 mah USB battery the Mini will run for 18 hours.

Infiray Sensors - IRAY technology has been developing and producing infrared FPA detectors, thermal cores, and other thermal products outside of the US for more than a decade. IRay has completely independent intellectual property rights and is committed to providing professional thermal imaging solutions across the globe. More than 50% of IRay's employees are R&D engineers and IRay has been awarded 219 technical patents.

The MH25 is the smallest fully multi-functional 12 micron thermal imaging monocular on the market. It can be used as a handheld monocular or helmet mounted monocular. The IRay Mini features bluetooth, picture-in-picture, and compatibility with rechargeable 16650 batteries as well as external power supply.  The MH25 is operated by an intuitive clearly labeled menu and user friendly rotary button. This one button operation has positive clicks with each selection and allows for quick and easy operation without having to search for any buttons in the dark.

The MH19 is the smallest fully multi-functional 17 micron thermal imaging monocular on the market. It can be used as a handheld monocular or helmet mounted monocular. The IRay Mini features bluetooth, picture-in-picture, and compatibility with rechargeable 16650 batteries as well as external power supply.

  • iRay Micro II Core
  • Multiple Image Modes
  • Picture-In-Picture
  • Digital Compass
  • Lightweight

Package includes: Thermal Monocular, Eye Cup, Lens Cap, Lanyard, Video/Power USB-C Cable, Battery Recharger,  User Manual

MH25 V2 MH19
Resolution 640x480 384x288
Pixel Size 12 micron 17 micron
Frame Rate 50 Hz 50 Hz
Image Processing MATRIX III MARTIX III
Core iRay Micro II 640 iRay Micro II 384
Thermal Sensitivity <50mk <50mk
Objective Lens 25 mm; F1.0 29 mm; F1.0
Optical Magnification 1x 1x
Digital Zoom 8x, stepped 4x, stepped
Field of View 17.5º x 14º 19º x 15º
Detection Range 1375 yds 950 yds
Display Type LCOS LCOS
Display Resolution 1280x960 1280x960
Imaging Modes White Hot, Black Hot, Red Hot, Rainbow White Hot, Black Hot, Red Hot, Rainbow
Reticle Types NA NA
Reticle Colors NA NA
Mounting System MUM Rail MUM Rail
Picture-In-Picture Yes Yes
Rangefinder Stadiametric Stadiametric
Eye Relief 20mm 20mm
Onboarding Recording No No
Data Connector USB-C, Analog Video Out USB-C. Analog Video Out
Power Connector USB-C USB-C
Power Supply USB-C, 16650/16340 Battery USB-C, 16650/16340 Battery
Start-Up Time >5 Seconds >5 Seconds
Size 5.03"x2.75"x1.77" 4.6"x2.75"x1.77"
Weight 8.64 oz 7.93 oz
Operating Temperature 14º - 122º F 14º - 122º F
Degree of Protection IP65 IP65
Warranty 5 years 5 years
