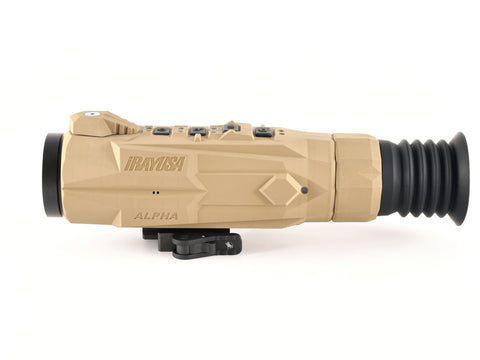

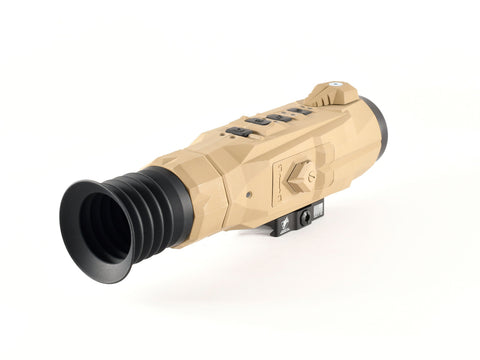

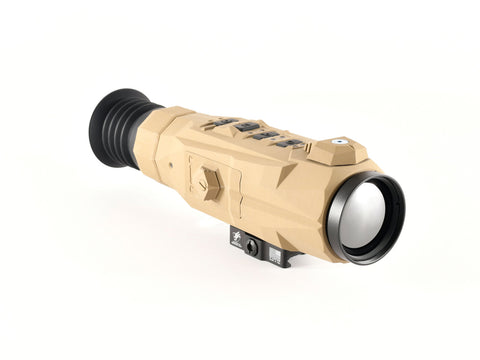

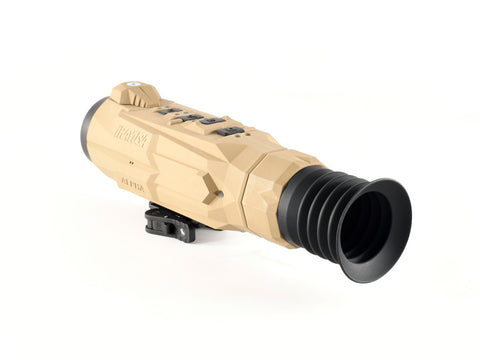

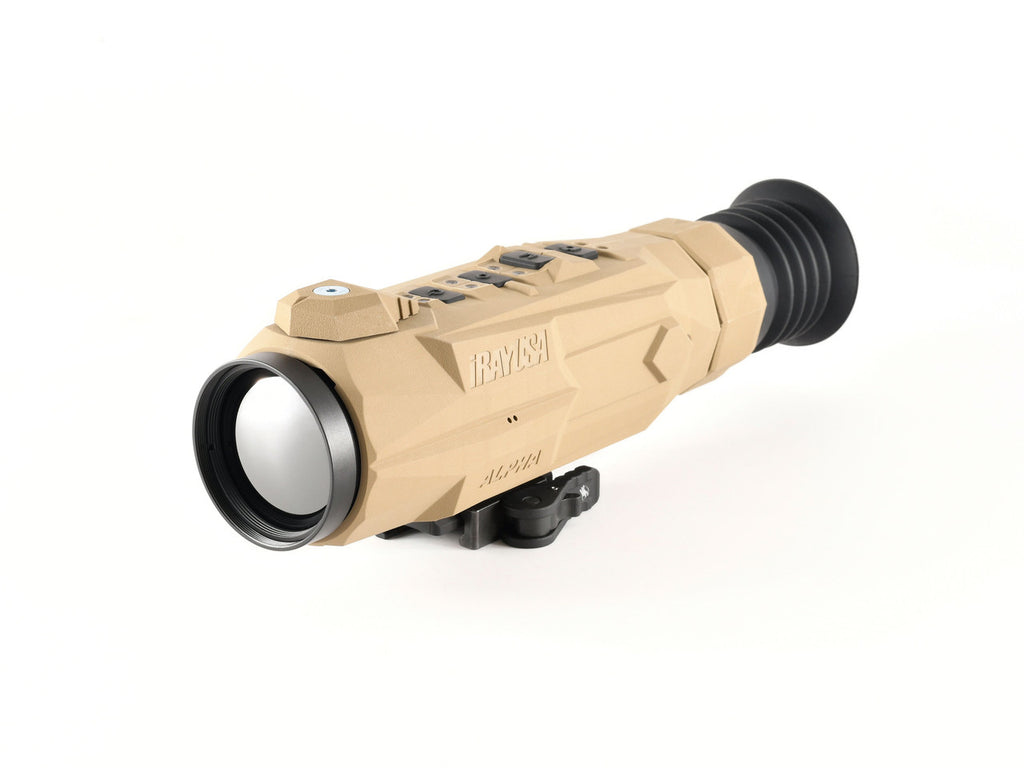

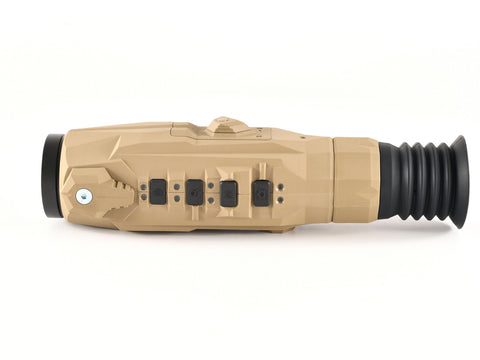

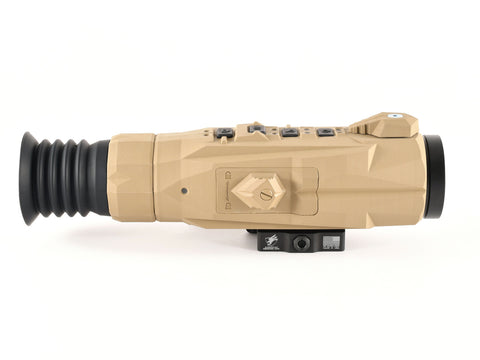

RICO ALPHA Thermal Weapon Sight

The iRayUSA RICO ALPHA is the culmination of decades of user feedback, research, development, and American engineering all imbedded in a thermal weapon-sight that is purpose built for the discerning nighthunter.  From the Autoloading Guarded Power Connector (AGPC) to the battery latch design, the RQD Quick Release Mount, to the ultra-rigid housing with Tactile Ridge Positioning and Single Finger Focus (SFF) design, the ALPHA was developed by hunters for absolute performance in every way. Additional performance-based features of the ALPHA include image and video capture, multiple dynamic reticles, stadiametric rangefinder and wireless connectivity. To top all that off, the ALPHA is proudly designed, machined, assembled and serviced right here in the great state of Texas.

The ALPHA features a high-performance iRay Micro II core and an extremely high contrast AMOLED HD display. The ALPHA takes its image processing one step further with Advanced Image Correction and Automatic Image Optimization courtesy of the MATRIX III image algorithm. Unmatched image quality paired with an intuitive and easy-to-use interface, picture-in-picture picture function, 6-hour run time, ultra rigid, glass-filled polymer housing, 1000 G shock resistance and 32 Gb of internal memory gives you all the tools you need to take your hunt to the next level.

  • iRay Micro II 640x512, 12 micron Core
  • High Contrast HD AMOLED display
  • Onboard recording - video & image
  • Picture in Picture

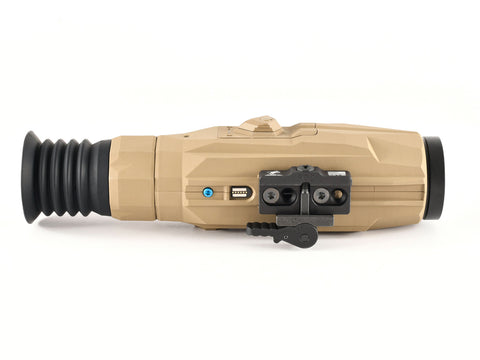

  • RQD Quick Release Mount
  • 32Gb internal memory
  • 1000 G shock resistant (300 Win / 7mm Mag)

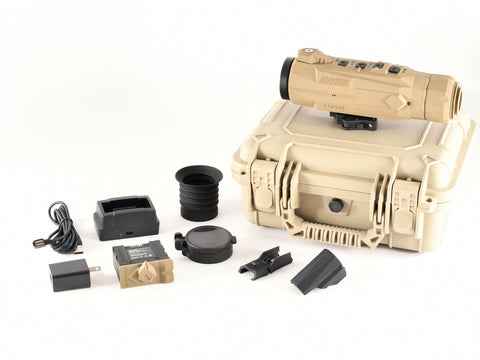

Package includes: Thermal Weapon Sight, Mount, USB Cable, Hard Case, User Manual

Resolution 640x512
Pixel Size 12 micron
Frame Rate 50 Hz
Image Processing MATRIX III
Core iRay Micro II 640
Objective Lens 50 mm; F1.1
Optical Magnification 3x
Digital Zoom 4x, stepped
Field of View 8.8º x 6.6º
Detection Range 2400 yds
Display Type AMOLED
Display Resolution 1024x768
Imaging Modes 5 - White Hot, Black Hot, Red Hot, Color, Highlight
Reticle Types 7 (2 Dynamic, 5 Static)
Reticle Colors 4 - Black, White, Red, Green
Mounting System Picatinny STD-1913 / ADM RQD Mount
Picture-In-Picture Yes
Rangefinder Stadiametric
Eye Relief 55 mm
Diopter Range -4 to +4
Onboarding Recording Video & Image
Wireless Connectivity Video and Image via App.
Power Supply Li-ion Battery Pack
Start-Up Time < 10 Seconds, Instant from Standby
Size 9.84" x 2.40" x 2.28"
Weight 33.68 oz (with batteries)
Operating Temperature -4º - 122º F
Degree of Protection IP67
Max. Recoil 1000 g/s2 (300 Win. / 7mm mag
Warranty 5 years
