RICO BRAVO Thermal Weapon Sight

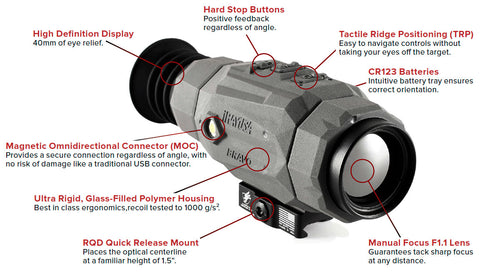

The iRayUSA RICO BRAVO is a lightweight and compact thermal imaging riflescope that pushes the boundaries of 384×288 long-wave performance. The BRAVO detection range is 1750 yards. Built around innovative ergonomics, cutting-edge connectivity, and iRayUSA’s MATRIX III algorithm, the BRAVO was designed by hunters for hunters. Ergonomic refinements make using the BRAVO effortless, from a strain-free Magnetic Omnidirectional USB Connector to next-generation Hard Stop Buttons to a Tactile Ridge Positioning System that puts fingers right where they’re needed.
The BRAVO is optically and electronically optimized to squeeze every bit of performance from iRayUSA’s MICRO II 12 μm sensor and manual focus F1.1 germanium lens. Additional features include high definition display, multiple dynamic reticles, stadiametric rangefinder, image and video capture, wireless connectivity, an ultra rigid glass-filled polymer housing, and an American Defense Manufacturing RQD quick release mount. To top it all off, the BRAVO was designed and assembled in Texas and is backed by a 5 year warranty and 1-week repair time guarantee. The BRAVO comes with a protective hard case.
- iRay Micro II Core
- HD display
- Advanced Image Correction
- Automatic Image Optimization
- Picture in Picture
- RQD Quick Release Mount
- 32Gb internal memory
- Aluminum Alloy housing
- 1000 G shock resistant

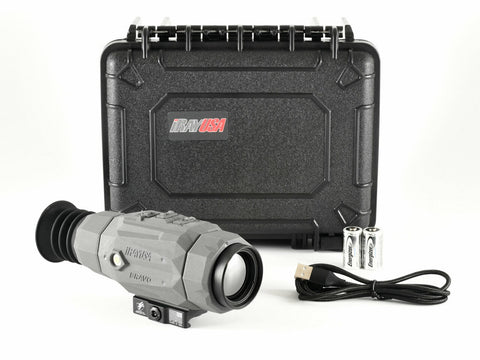

Package includes: Thermal Weapon Sight, Mount, USB Cable, Hard Case, User Manual
Resolution | 384x288 |
---|---|
Pixel Size | 12 micron |
Frame Rate | 50 Hz |
Image Processing | MATRIX III |
Core | iRay Micro II 384 |
Objective Lens | 35 mm; F1.1 |
Optical Magnification | 3x |
Digital Zoom | 4x, stepped |
Field of View | 7.5º x 5.7º |
Detection Range | 1750 yds |
Display Type | High-Definition |
Display Resolution | 1280x960 |
Imaging Modes | White Hot, Black Hot, Red Hot, Color, Highlight |
Reticle Types | 7 (2 Dynamic, 5 Static) |
Reticle Colors | Black, White, Red, Green |
Mounting System | Picatinny STD-1913 / ADM RQD Mount |
Picture-In-Picture | Yes |
Rangefinder | Stadiametric |
Eye Relief | 40mm |
Onboarding Recording | Video & Image |
Wireless Connectivity | Video and Image via App. |
Data/Power Connector | Magnetic Omnidirectional Connector |
Power Supply | CR123A x 2; USB via Magnetic Omnidirectional Connector |
Start-Up Time | >10 Seconds, Instant from Standby |
Size | 7.78"x2.79"x3.13" |
Weight | 21.2 oz (with batteries) |
Operating Temperature | -4º - 122º F |
Degree of Protection | IP67 |
Max. Recoil | 1000 g/s2 300 Win. / 7mm mag |
Warranty | 5 years |
