InfiRay Outdoor RICO MICRO Series Multifunction Thermal Weapon Sight

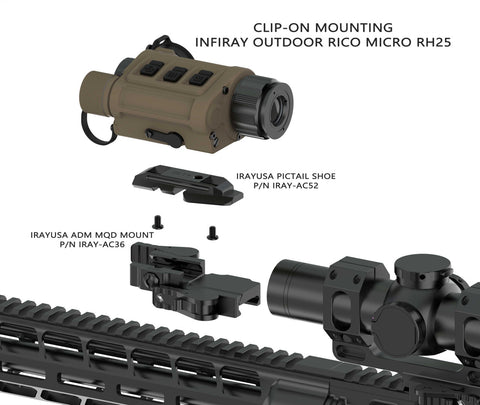

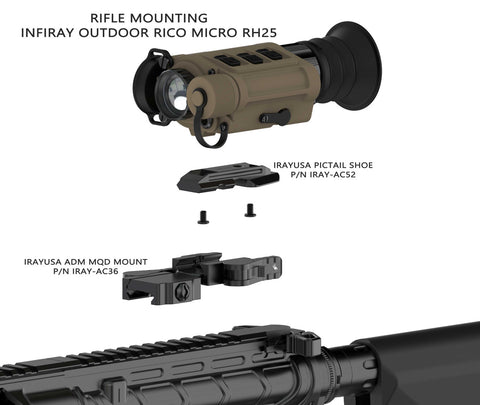

The InfiRay Outdoor RICO MICRO Series is an advanced electro-optic device miniaturized to deliver remarkably versatile functionality: Handheld, helmet mount, weapon mount, and clip-on. Weighing less than a pound, the MICRO will fit in the palm of your hand and can be used with standard dovetail helmet mounts or rifle-mounted as a stand-alone weapon sight. InfiRay Outdoor is blazing a new trail with features never-before-seen in a helmet-mounted thermal, such as onboard recording, onboard video play-back, and a high definition AMOLED display.
The RICO MICRO is available in two models:
-

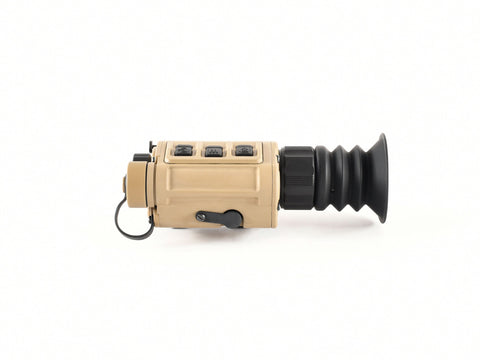

RICO MICRO 640 RH25 in tan only

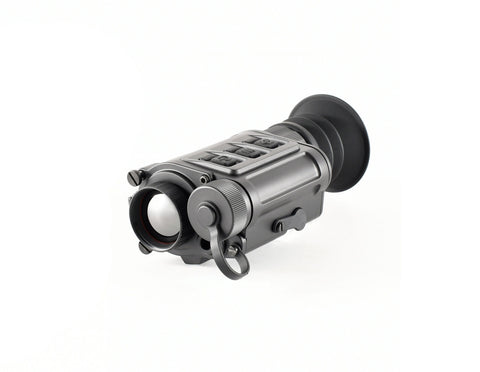

- RICO MICRO 384 RL25 in black only
The RH25 also features InfiRay’s latest high-performance 640x512, 12 μm sensor technology, MATRIX III processing, and a manual-focus f/1.0 objective lens to create an image that is unlike anything in its class. The RL25 has the 384x288, 12 µm sensor.
InfiRay Outdoor’s cutting edge manufacturing techniques and the highest-quality components on the market combine to produce an optic that is a step ahead of the competition in size, weight, and performance. The RICO MICRO has the features night hunters want and is more capable than optics twice the price and twice the size.
- Remarkable versatility - use as handheld, helmet mounted or weapon mounted thermal imager
- iRay Micro II Core
- Multiple Image Modes
- Lightweight
Package includes: Thermal Monocular, Eye Cup, Lens Cap, Lanyard, ADM RICO MICRO MQD Mount, Video/Power USB-C Cable, Battery Recharger, User Manual.
| RH25 | RL25 | |
| Resolution | 640x512 | 384x288 |
| Pixel Size | 12 µm | 12 µm |
| Frame Rate | 50 Hz | 50 Hz |
| Image Processing | MATRIX III | MARTIX III |
| Core | iRay Micro II 640 | iRay Micro II 384 |
| Thermal Sensitivity | <50mK | <50mK |
| Objective Lens | 25 mm; f/1.0 | 25 mm; f/1.0 |
| Optical Magnification | 1x | 2x |
| Digital Zoom | 4x, stepped | 4x, stepped |
| Field of View | 17.5º x 14º | 10.5º x 7.9º |
| Detection Range | 1375 yds | 1420 yds |
| Display Type | AMOLED | AMOLED |
| Display Resolution | 1024x768 | 1024x768 |
| Imaging Modes | 4 - White Hot, Black Hot, Red Hot, Rainbow | 4 - White Hot, Black Hot, Red Hot, Rainbow |
| Reticle Types | 7 | 7 |
| Reticle Colors | 4 - Black, White, Red, Green | 4 - Black, White, Red, Green |
| Working Modes | Standalone, Handheld, Helmet, & Clip-on | Standalone, Handheld, Helmet, & Clip-on |
| Mounting System | MUM Rail/Picatinny STD-1913, PICATAIL optional | MUM Rail/Picatinny STD-1913, PICATAIL optional |
| Picture-In-Picture | No | No |
| Rangefinder | No | No |
| Eye Relief | 35 mm | 35 mm |
| Diopter Range | -4 to +4 | -4 to +4 |
| Onboard Recording | Video & Image | Video & Image |
| Wireless Connectivity | Video/Image via App | Video/Image via App |
| Data/Power Connector | Data, 7-Pin connector | Data, 7-Pin connector |
| Power Supply | 18650 Battery, > 4 hrs | 18650 Battery, > 4 hrs |
| Start-Up Time | < 10 Seconds, Instant from Standby | < 10 Seconds, Instant from Standby |
| Size | 4.52"x2.55"x1.88" | 4.52"x2.55"x1.88" |
| Weight | 12.7 oz | 12.7 oz |
| Operating Temperature | -4º to 122º F | -4º to 122º F |
| Housing Material | Aluminum | Aluminum |
| Degree of Protection | IP67 | IP67 |
| Warranty | 5 years | 5 years |
