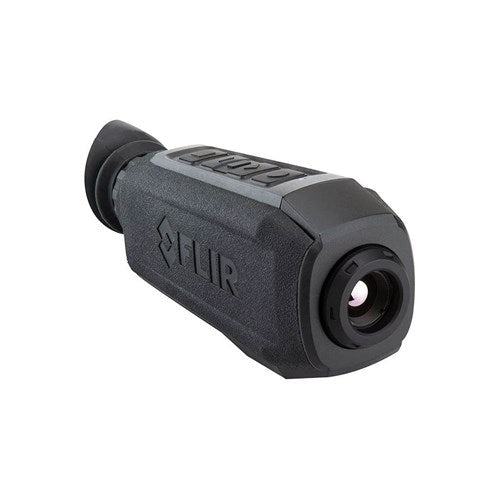

The FLIR Systems Scion PTM366 640x480 Thermal Monocular can detect thermal signatures and view, record, or relay images and videos of thermal signatures through fog, smoke, and foliage during the day or in darkness. The monocular features BOSON 12-micron VOx Microbolometer with 640 × 512 pixel resolution that operates at a 60 Hz refresh rate giving you penetrating vision and fast detection in day or night. Additional features include onboard recording and several palettes.
The FLIR Scion PTM366 monocular has a Quad-VGA (1280x960) High Definition that allows you to view high-contrast images and for storage it has 2 GB of internal memory and optional microSD card with up to 128 GB expansion . The monocular has a built-in USB Type-C port that allows you to charge your imaging device as well as transfer your images to your computer.This monocular also comes with suite components like Bluetooth, magnetic compass, accelerometer. It has a water-proof and impact-resistant polymer body that is durable and lightweight to carry.
Scion PTM366 640x480 Thermal Monocular Features:
The FLIR Scion PTM366 monocular has a Quad-VGA (1280x960) High Definition that allows you to view high-contrast images and for storage it has 2 GB of internal memory and optional microSD card with up to 128 GB expansion . The monocular has a built-in USB Type-C port that allows you to charge your imaging device as well as transfer your images to your computer.This monocular also comes with suite components like Bluetooth, magnetic compass, accelerometer. It has a water-proof and impact-resistant polymer body that is durable and lightweight to carry.
Scion PTM366 640x480 Thermal Monocular Features:
- Thermal Imaging Monocular
- Refresh Rate: 60Hz
- Lens System: 25mm
- 12-micron FLIR Boson VOx Microbolometer
- Quad-VGA (1280x960) High Definition Display
- 1.3x Magnification
- Onboard Recording
- Professional Thermal Monocular
Specifications:
Detector Type | 640 × 512 12-micron FLIR Boson VOx |
Refresh Rate | 60 Hz |
Eye Relief | 16 mm |
Magnification | 1.3x |
Lens System | 25 mm |
Field of View (H x V) | 18° × 13° |
Digital Zoom | 1,2,4,8x |
Display | Quad-VGA (1280x960) High Definition |
Color Imaging Pallets | White Hot, Black Hot, Iron Bow, Rainbow, Graded Fire, Lava |
Viewing Modes | Scouting, Picture-in-Picture |
Internal Memory | 2GB(Optional Micro Sd Card expandable up to 128GB) |
Onboard Image/Video Recording | Yes |
Picture While Recording | Yes |
Real Time Clock | Yes |
USB | USB-C; Power In; Video Out; Video and Image File Transfer |
Bluetooth | BLE 4.1+ |
WiFi | File Transfer, Video Streaming |
TruWITNESS Integration | Yes |
Magnetic Compass | Yes |
GPS Geo Positioning | Yes |
Auto Power Off | Yes |
Accelerometer | Yes |
Battery Type | 6x CR123A 3V Lithium Battery |
Battery Life | up to 4.5 Hours at 20°C |
Environment Rating | IP67 |
Mounting | 1/4-20 Tripod Mount |
Condition | New |
