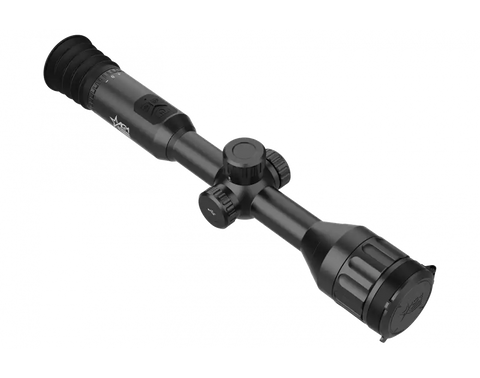

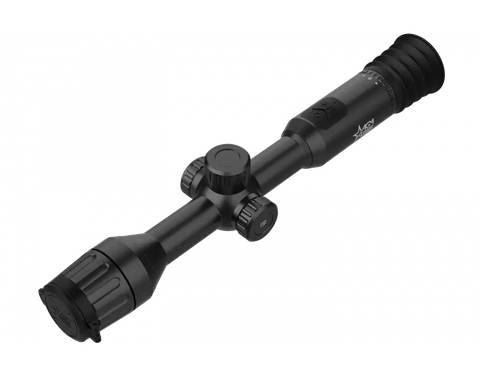

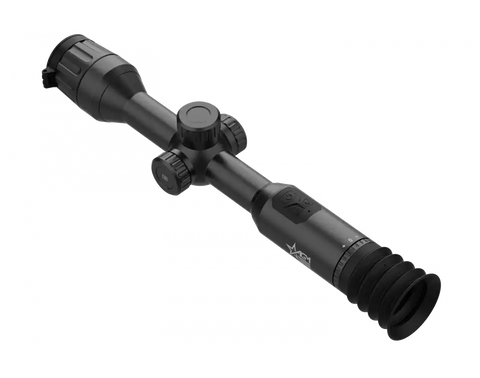

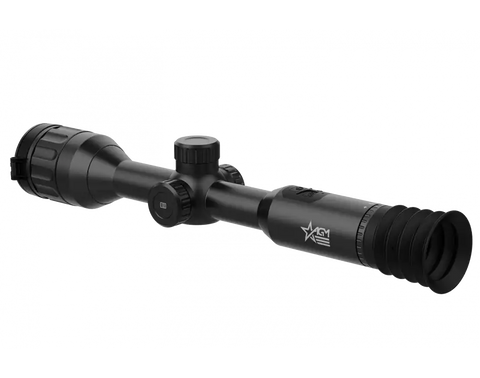

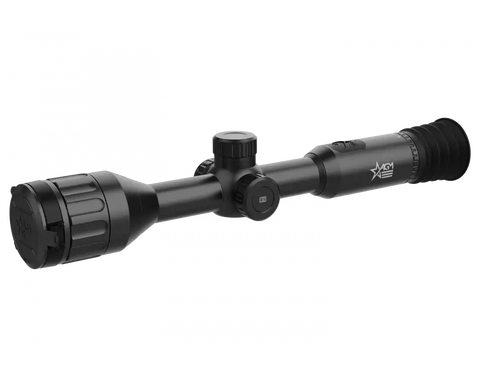

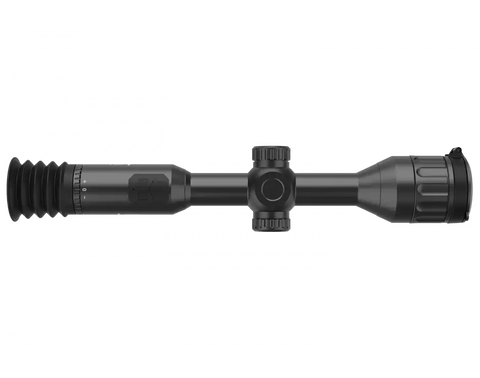

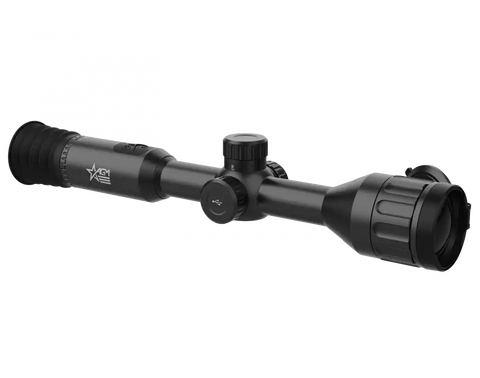

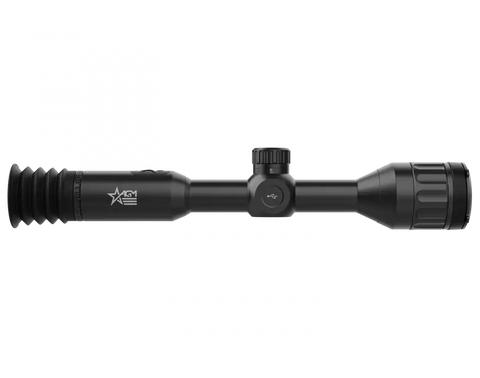

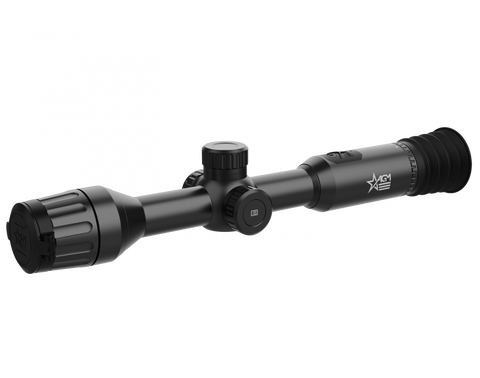

AGM Adder 640 Thermal Imaging Riflescope

The AGM Adder TS35-640 and the Adder TS50-640 are the thermal imaging scopes developed for 24 hours operation under any weather and environmental conditions.  Two objective lens options allow the customer to choose the perfect unit for your needs where the 35mm lens is designed for medium range shooting, while the 50mm lens model will be great for long range missions.

The Adder 640 riflescope has 640x512, 12µm high-sensitivity thermal detector and 1024x768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, brush, camouflage, etc.  The scope is mainly applied to scenarios such as patrolling and hunting, etc.

The scope is equipped with a unique dual power system.  Two built-in 18650 rechargeable batteries with one replaceable CR123 lithium battery provide up to 15 hours of continuous operation.  The device has fast 64GB EMMC storage for on-board video recording and image capturing.  Shot Activated Recording (SAR) function allows you to not worry about having to start recording manually each time.  Wi-Fi module for live video streaming and video/images recording via application are also available.  AGM Adder scope has the ability to work in conjunction with an external laser rangefinder.  Data transfer between the optional rangefinder and the scope is carried out via Bluetooth connection.

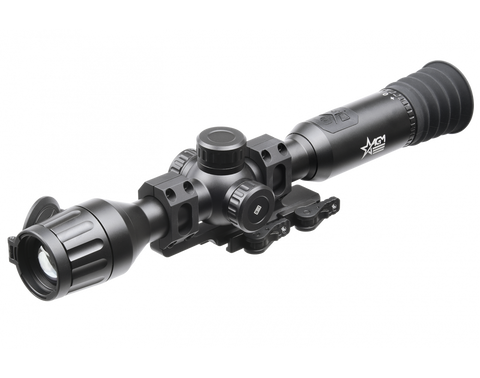

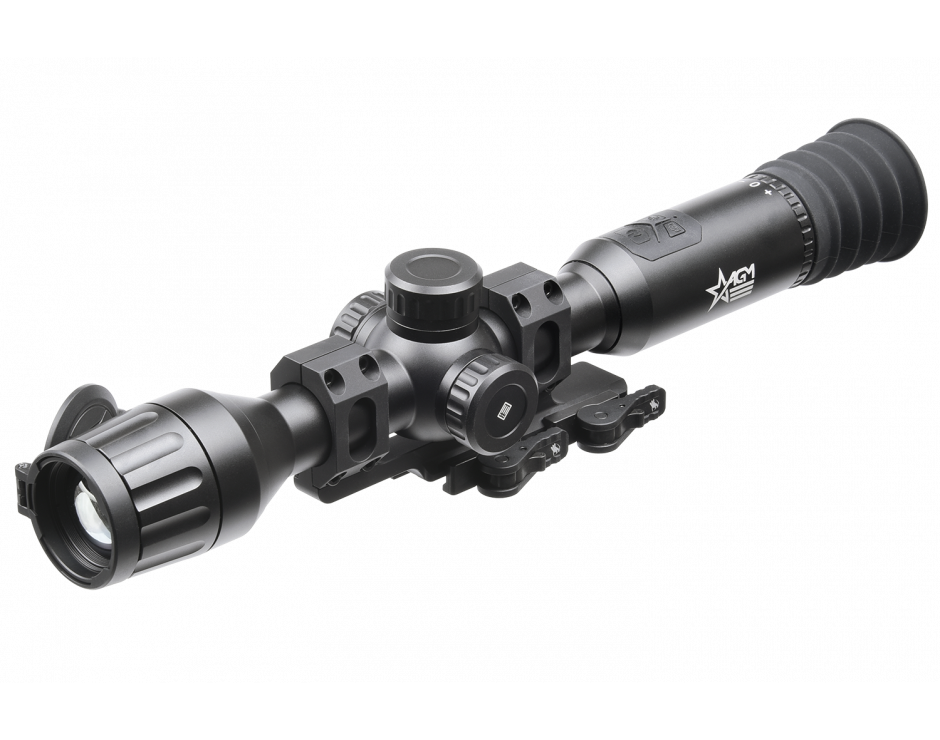

The Adder comes with an American Defense Manufacturing (ADM) AD Recon scope mount - but can be mounted to the weapon using standard scope mounts for 30mm tubes.  The traditional style 30mm tube meets the needs of professional hunters who value traditions and seek technological superiority, ensure an extreme detection range of up to 2600 meters.

The AGM Adder thermal imaging riflescope with 640 x 512 resolution is available in two models:

  • Adder TS35-640
  • Adder TS50-640

The Adder in 384 x 288 resolution (Adder TS35-384 & Adder TS50-384) are available here.

Equipment described herein is subject to US export regulations and may require a license prior to export.  Diversion contrary to US law is prohibited.

  • 640 x 512 thermal resolution
  • 12 µm high-sensitivity detector
  • Fast 50 Hz imaging
  • High-resolution OLED display
  • 1x, 2x, 4x, 8x digital zoom
  • On-board video and audio recording
  • Shot Activated Recording (SAR)
  • American Defense Manufacturing Scope Mount included
  • Wi-Fi data transmission
  • Fast 16GB EMMC built-in storage
  • Various reticle types and colors
  • Adjustable color palettes
  • Standby mode
  • Waterproof & shockproof
  • Dual power system
  • Up to 15 hours continuous working
  • External power supply capability
  • Limited 3-year warranty

Package includes: Thermal Imaging Riflescope, American Defense Manufacturing AD Recon Scope Mount, Soft Case, USB Cable, Lens Cloth, User Manual

Model TS35-640 TS50-640
Sensor Resolution 640 x 512 640 x 512
Pixel Size 12µm 12µm
Sensor NETD, mK < 35 < 35
Refresh Rate 50 Hz 50 Hz
Lens System 35 mm; F/1.0 50 mm; F/1.0
Optical Magnification 2.0x 2.5x
Field of View 12.3º x 9.9º 8.8º x 7.0º
Detection Range 1800 m 2600 m
Digital zoom 1x, 2x, 4x, 8x 1x, 2x, 4x, 8x
Eye Relief ≥ 60 mm ≥ 60 mm
Diopter Adjustment -5 to +5 dpt -5 to +5 dpt
Display 1024x768 50 Hz OLED 1024x768 50 Hz OLED
Reticle 5 types, 4 colors, on/off 5 types, 4 colors, on/off
Boresight Adjustment Digital Controlled Digital Controlled
Boresight Increment 0.22 mil / 0.73 MOA 0.15 mil / 0.51 MOA
Distance Measurement Yes (Stadiametric Rangefinder) Yes (Stadiametric Rangefinder)
Palettes Black Hot, White Hot, Red Hot, Fusion Black Hot, White Hot, Red Hot, Fusion
Scene Mode Jungle, Recognition Jungle, Recognition
Picture in Picture Mode (PIP) Yes Yes
Hotspot Yes Yes
Standby Mode Yes Yes
Video/Audio Recording Yes/Yes Yes/Yes
Picture Snapshot Yes Yes
CVBS Output Yes (via USB) Yes (via USB)
Defective Pixels Correction (DPC) Yes Yes
Uniformity Correction Auto, Manual, External Correction Auto, Manual, External Correction
Storage Built-in EMMC (64GB) Built-in EMMC (64GB)
Battery Type Two 18650 rechargeable batteries (built-in) and one CR123A lithium battery Two 18650 rechargeable batteries (built-in) and one CR123A lithium battery
Battery Life (Operating) Up to 12 hours @ 68°F Up to 12 hours @ 68°F
External Power Supply 5 VDC/2 A, USB Type-C supports QC3.0 5 VDC/2 A, USB Type-C supports QC3.0
Operating Temperature -30°/+55°C (-22°/+131°F) -30°/+55°C (-22°/+131°F)
Degree of Protection IP67 IP67
Overall Dimensions (without mount) 16.0 x 3.1 x 3.0 in 16.5 x 3.1 x 3.2 in
Weight (without mount) 890 g (1.96 lbs) 970 g (2.14 lbs)
Warranty Limited 5 years Limited 5 years
