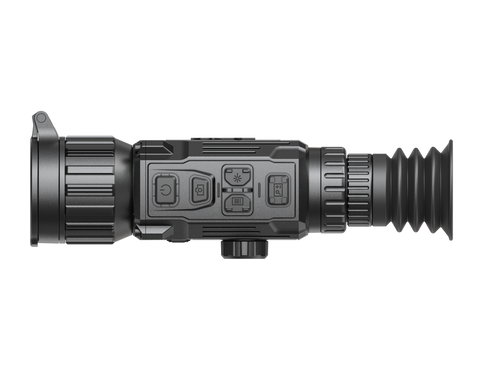

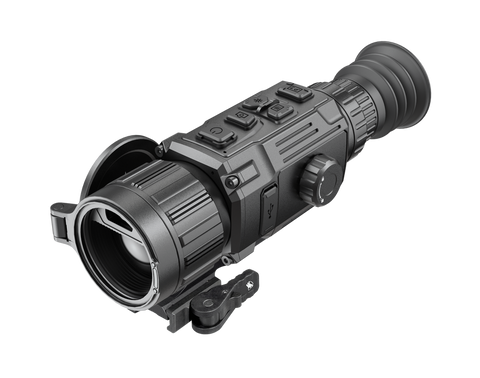

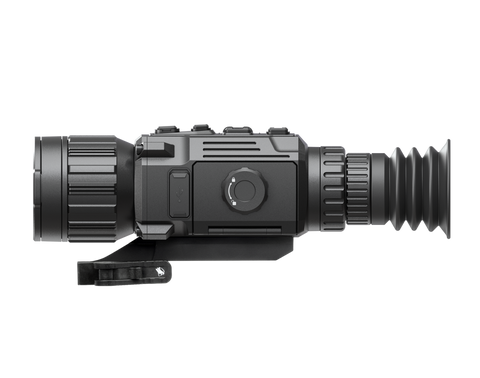

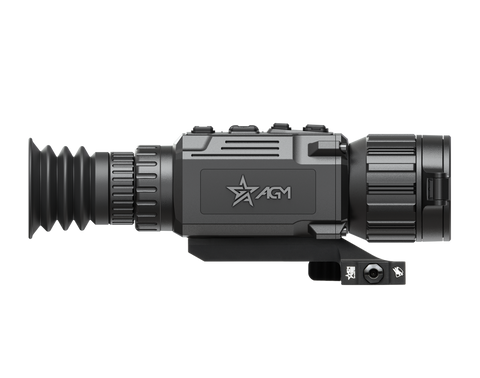

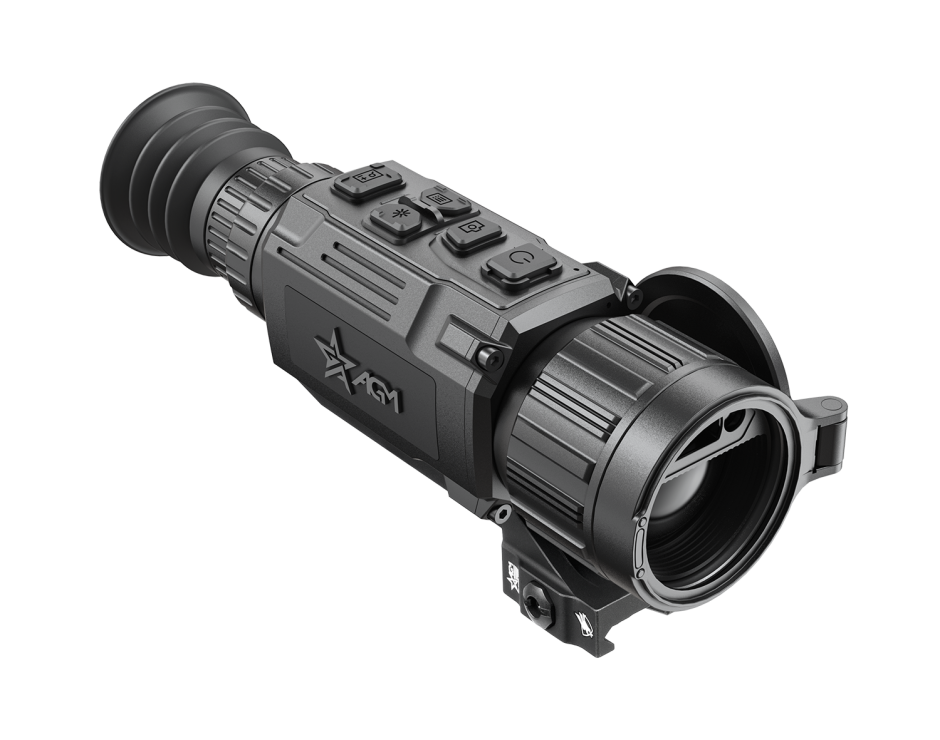

RattlerV3 LRF 35-384 Thermal Imaging Riflescope
Although it seems like just yesterday the celebrated AGM Rattler thermal riflescope family got upgraded with the introduction of the RattlerV2’s, the NEW RattlerV3 LRF testifies to the fact that evolution never stops.
The RattlerV3 LRF 35-384 pairs a 35mm Germanium lens with an industry-leading sub-15mK thermal sensor and a new 1920x1080 high resolution display, which combines to produce the best 384 resolution thermal image. These technical parameters work together to produce a detection range of 1.5 miles. The RattlerV3 LRF also brings the once inconceivable new in-lens LRF technology to the compact Rattler series.
A fully integrated 1,000m laser rangefinder is paired with a new on-board ballistic calculator. A newly designed eyepiece gives the RattlerV3 LRF 35-384 a base magnification of 3.5x, making it an optimal option for predator hunters in wide-open terrain, which entices longer range engagements. It's also the first Rattler ever to come with a shutterless NUC and AGM's powerful new Image Boost 2.0 imaging algorithm.
Large sturdy buttons were designed to aid gloved fingers in cold winter weather, while the removable rechargeable NE-4400 battery offers one of the most robust and easy to install battery systems on the market. The firmware package allows users an amazing level of customization: on-board pitch scale, 10 brightness and contrast settings, warm & cold viewing modes, multiple color palettes, picture in picture, ballistic calculation, on-board video recording with sound, WiFi hotspot, multiple zeroing profiles, shot activated video recording, defective pixel repair, hotspot locator and multiple laser range finding modes. Also included is an American-made ADM mounting system.
Package includes: Thermal Imaging Riflescope, ADM 2120 QD Mount, Two NE-4400 Rechargeable Batteries, Battery Charger, USB Cable, Lens Cloth, Carrying Case, User Manual
This product is subject to the International Traffic in Arms Regulations (ITAR). You many not export, re-export, resell, transfer or otherwise dispose of this product to any other country without first obtaining approval from the U.S. Department of State, Directorate of Defense Trade in accordance with the ITAR, Title 22, and Code of Federal Regulations Part 120-130. Diversion contrary to U.S. law is prohibited.
- Superior sub-15 milikelvin thermal sensitivity
- 384x288 thermal resolution with 12 micron sensor
- Built-in 1,000m laser rangefinder in the lens
- Integrated ballistic calculator
- Large OLED display with 1920x1080 resolution
- Shutterless technology
- Various reticle types and colors
- 3.5x to 28x magnification
- 1x, 2x, 4x, 8x digital zoom
- On-board video/audio recording and image capture
- Built-in EMMC storage (64 GB)
- Shot Activated Recording (SAR)
- Wi-Fi data transmission
- Standby mode
- Rechargeable and replaceable battery with up to 7 hours of run time
- Custom ADM QD Mount
- External power supply compatibility
- Waterproof & shockproof
- 5-year warranty
| RattlerV3 35-384 | |
| Detector Type | 12µm Uncooled Focal Plane Array |
| Resolution | 384 x 288 |
| Frame Rate | 50 Hz |
| NETD | ≤ 15mK (@25ºC, F# = 1.0) |
| Lens System | 35 mm; F/1.0 |
| Detection Range (6' object) | 2,480 m (2710 yd) |
| Base Magnification | 3.5x |
| Magnification Range | 3.5x - 28x |
| Digital Zoom | 1x, 2x, 4x, 8x |
| Field of View | 7.5° x 4.5° (13.2 x 7.9 at 100m) |
| Exit Pupil | 6 mm |
| Eye Relief | 45 mm |
| Diopter Adjustment | -4 D to +3 D |
| Min. Focus Distance | 10 m |
| Display | 1920x1080, 0.49 inch, OLED |
| Picture-in-Picture (PiP) | Yes |
| Hot Tracking | Yes |
| Color Palettes | Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome |
| Brightness Adjustment | Yes |
| Tone Adjustment | Cold, Warm |
| Image Boost 2.0 | Yes |
| Zoom Pro | Yes |
| Shutterless NUC | Yes |
| Flat Field Correction (FFC) | Semi-Auto, Manual |
| Defective Pixels Correction (DPC) | Yes |
| Distance Measurement | Built-in Laser Rangefinder (10m to 1000m, ±1 m accuracy) |
| Reticle | 10 types, 4 colors, on/off |
| Zeroing Profiles | 5 |
| Freeze Zeroing | Yes |
| WiFi Hotspot | Yes |
| Video Recording | On-board video recording, 1920x1080 |
| Image Capture | Yes, 1920x1080 |
| Audio Recording | Yes |
| Shot-Activated Recording (SAR) | Yes |
| Storage | Built-in EMMC (64 GB) |
| Local Album | Yes |
| Standby Mode | Yes |
| Battery Type | Replaceable & Rechargeable Li-ion Battery pack, NE-4400 |
| Battery Life (Operating, 25°C) | ≥7 hours (with hot spot off) |
| External Power Supply | 5V DC/ 2 A, USB Type-C interface |
| Operating Temperature ºC (ºF) | -30°/+55°C (-22°/+131°F) |
| Max Recoil | 1000 g/0.4 ms |
| Protection Level | IP67 |
| Dimensions | 229x66x67 mm (9.0 x 2.6 x 2.6 in) |
| Weight (without battery) | 0.68 kg (1.5 lbs) |
| Laser Safety Class | Class 1 |
| Wavelength | 905 nm |
| Measuring Range | 10 m to 1000 m |
| Measurement Accuracy | ±1 m |
| Warranty | 5 years |
