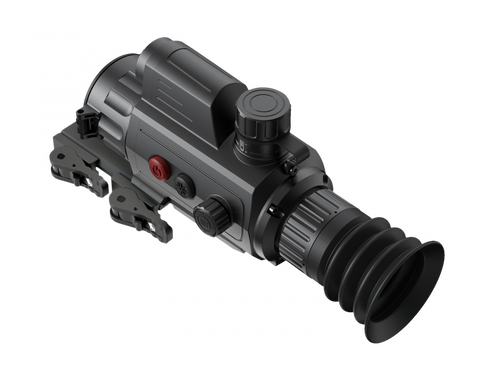

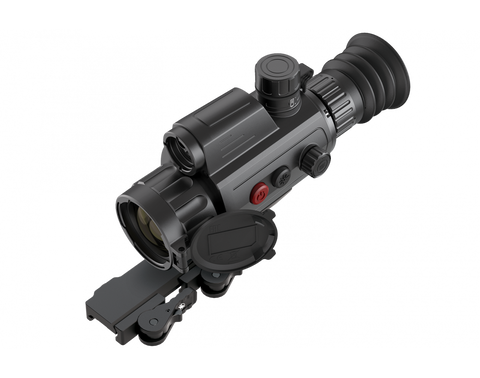

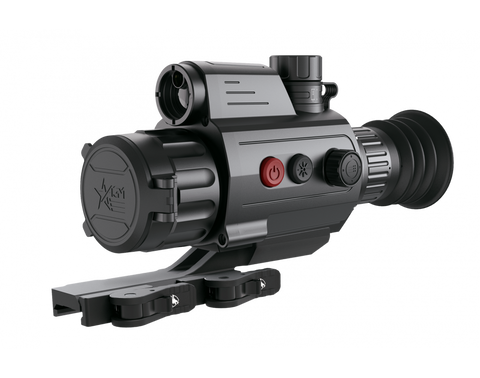

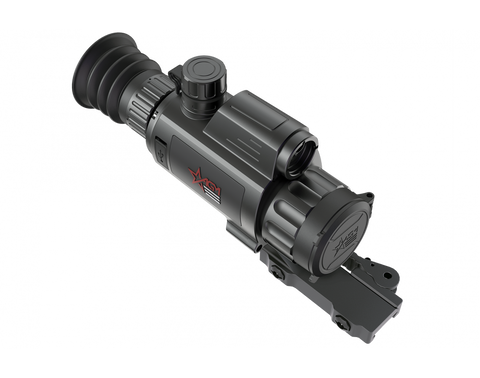

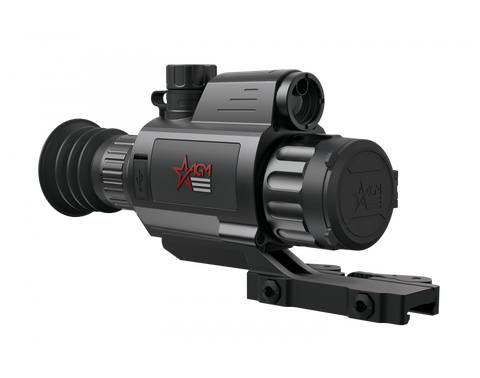

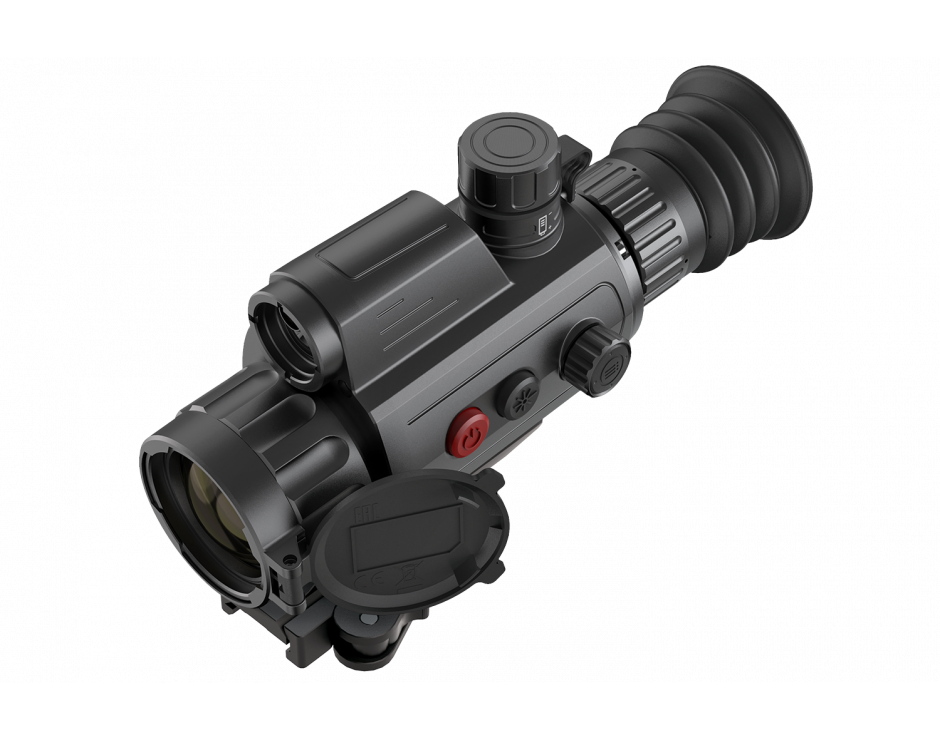

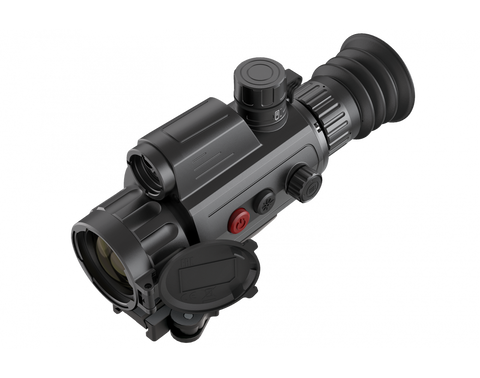

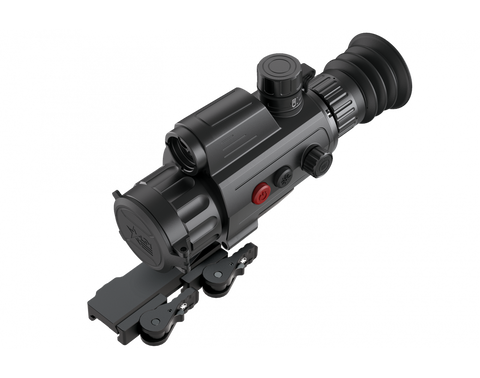

AGM Varmint LRF 384 Compact Thermal Imaging Riflescope with Laser Rangefinder
The AGM Varmint LRF is a compact thermal imaging scope developed for 24-hour operation under any weather and environmental conditions. Available in multiple configurations: 384x288(50 Hz) thermal detector or 640x512 (50 Hz) thermal detector, and 35mm or 50mm objective lens. These options allow the customer to choose the perfect unit for their needs. The 35mm lens is designed for medium-range applications, while the 50mm lens will be better suited for long-range engagements.
Equipped with a highly sensitive, 12μm thermal detector and 1024×768 OLED monitor, the AGM Varmint LRF provides a clear image under harsh environment conditions including darkness, fog, smoke, dust, rain, snow, brush, camouflage, etc. The device can be used as a thermal riflescope or handheld monocular, and can be applied to scenarios such as patrolling, hunting, static observation, and more.
The built-in laser range finder of the AGM Varmint LRF is designed to determine the exact distance between the observer and the target. Measurement results are displayed on the scopes monitor. One 18650 rechargeable battery gives the device up to 4.5 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB to USB-C connector for a significant increase of operating time. The device is equipped with fast EMMC storage for on-board video recording and image capturing. An internal Wi-Fi module for live video streaming and video/image recording via application are also included.
The Varmint LRF thermal imaging riflescope with 384 x 288 resolution is available in two models:
- Varmint LRF TS35-384
- Varmint LRF TS50-384
The Varmint LRF in 640 x 512 resolution (Varmint LRF TS35-640 & Varmint LRF TS50-640) is available here.
Equipment described herein is subject to US export regulations and may require a license prior to export. Diversion contrary to US law is prohibited.
- 384 x 288 thermal resolution
- 12 µm high sensitivity thermal detector
- Fast 50Hz imaging
- 1024 x 768 resolution 0.39-inch OLED display
- 3x (TS35-384) or 4x (TS50-384) base magnification
- 1x, 2x, 4x, 8x digital zoom
- Built-in laser rangefinder
- Digital image processing technology
- Video recording and snapshot, built-in EMMC (16GB)
- Various reticle types and colors
- Adjustable color palettes
- Wi-Fi data transmission
- Standby mode
- Up to 4.5 hours continuous runtime
- External power supply capability
- Waterproof & shockproof
- Limited 5-year warranty
Package includes: Thermal Imaging Riflescope, Mount, 18650 Rechargeable Battery, USB Cable, Battery Charger, Power Adapter, Lens Cloth, Soft Case, User Manual
TS35-384 | TS50-384 | |
Detector Type | 12 µm VOx Uncooled | 12 µm VOx Uncooled |
Resolution | 384 x 288 px | 384 x 288 px |
Refresh Rate | Sensor 50 Hz / OLED 50Hz | Sensor 50Hz / OLED 50 Hz |
Response Waveband | 8 µm to 14 µm | 8 µm to 14 µm |
Lens (Focal Length) | 35 mm | 50 mm |
Aperture | F1.0 | F1.0 |
Field of View | 7.53º x 5.65º | 5.28° x 3.96° |
Magnification | 3x - 24x | 4x - 32x |
Digital zoom | 1x, 2x, 4x, 8x | 1x, 2x, 4x, 8x |
Observation Range | 1,750 m | 2,500 m |
Eye Relief | 45 mm | 45 mm |
Monitor | 1024x768, 0.39-inch, OLED | 1024x768, 0.39-inch OLED |
FFC (Flat Field Correction) | Auto, Manual, External Correction | Auto, Manual, External Correction |
Palettes | Black Hot, White Hot, Red Hot, Fusion | Black Hot, White Hot, Red Hot, Fusion |
Highest Temperature Spot Tracking | Yes | Yes |
Scene Mode | Jungle, Recognition | Jungle, Recognition |
Reticle | 5 types, 4 colors, on/off | 5 types, 4 colors, on/off |
Laser Range Finder | Up to 600 m, +/- 2 m accuracy | up to 600 m, +/- 2 m accuracy |
Laser Wavelength | 905 nm | 905 nm |
Laser Safety Class | Class 1 | Class 1 |
Boresight Adjustment | Digital Controlled | Digital Controlled |
Boresight Increment | 0.13 mil / 0.44 MOA | 0.09 mil / 0.31 MOA |
One Scale Interval (Reticle #4) | 2 mil / 6.75 MOA | 2 ,il / 6.75 MOA |
Hotspot | Yes | Yes |
Sleep Mode | Yes | Yes |
Picture In Picture Mode | Yes | Yes |
Burn Prevention | Yes | Yes |
Built-in Storage | 16 GB EMMC | 16 GB EMMC |
Record Video | On-board video recording | On-boarding video recording |
CVBS Output | Yes (via USB) | Yes (via USB) |
Battery Type | One 18650 (3.7V) lithium rechargeable battery | One 18650 (3.7V) lithium rechargeable battery |
Battery Life (Operating) | Up to 4.5 hours | Up to 4.5 hours |
Battery Capacity Display | Yes | Yes |
External Power | 5 VDC/2 A, USB Type-C | 5 VDC/2 A, USB Type-C |
Operating Temperature ºC (ºF) | -20°/+55° (-4°/131°) | -20°/+55° (-4°/131°) |
Degree of Protection | IP67 | IP67 |
Drop Test Height | 1.5 m (4.9 ft) | 1.5 m (4.9 ft) |
Overall Dimensions (LxWxH) | 7.8 x 2.6 x 4.3 in | 8.3 x2.9 x 4.3 in |
Weight (w/o batteries) | 652 g (1.44 lbs) | 722 g (1.59 lbs) |
Warranty | Limited 5 years | Limited 5 years |
