Armasight

BVND-40 Gen 3 Pinnacle

  • Sale
  • Regular price $8,199.00

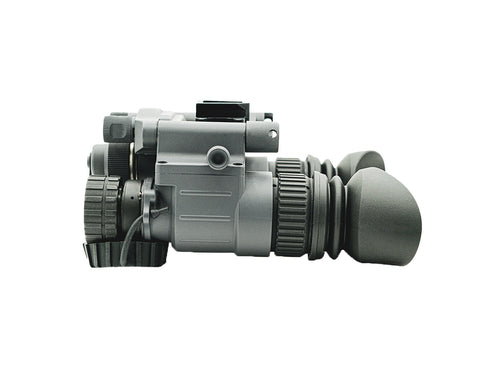

The Armasight BNVD-40 Gen 3 Pinnacle Night Vision Binocular is exclusively available in Ghost White Phosphor Image Intensifier Tubes, the preferred choice of elite special operators across the globe, and comes equipped with a built-in infrared (IR) illuminator. The BNVD-40 allows you to navigate low-light areas even in complete darkness. This true dual-channel night vision goggle is available in an expansive 40-degree field of view (FOV) version.

Armasight night vision products are encased in a tough yet compact housing that is both fog and water-resistant. The BNVD-40 Night Vision Binocular is designed to meet or exceed performance standards of military and law enforcement professionals, allowing you to maintain maximum situational awareness while navigating, observing, and tracking moving objects and vehicles.

Additional mounting options (sold separately) allow you to use the BNVD-40 as helmet-mounted night vision goggles, adding the ability to quickly and easily move them out of the way in an instant. The BNVD articulates, allowing for it to be configured for use as monocular over either eye, preserving your biological night vision in one eye if desired.

The manual gain control lets you adjust the brightness level to your personal preference, and if the ambient light level exceeds the limits of the BVND, the automatic protective system will shut off the Image Intensifier Tubes (IIT) to prevent damage while observing under changing light conditions.

The Armasight BNVD-40 Gen 3 Pinnacle NVG is only available in Ghost White Phosphor IIT color with two IIT image quality options:

  • Pinnacle, Minimum 2000 FOM
  • Pinnacle 2376, Minimum 2376 FOM

Complete your mission with confidence using the battle-proven Armasight BNVD-40.

Package Contents:

  • BNVD-40 Night Vision Binocular with Pinnacle White Phosphor Image Intensifier Tubes
  • Lens Cap
  • Eyecup
  • Sacrificial Window
  • Demist Shield
  • NVG (Dovetail) Interface Shoe
  • Bayonet/Horn Interface Shoe
  • Battery Key
  • Product Manual
  • Lens Cloth
  • Soft Carrying Case
  • CR123A Battery
  • 3 year limited warranty with registration

More about Armasight Generation 3 Pinnacle / Pinnacle 2376 Image Intensifier Tubes

The best combination of price and performance. Our Pinnacle Image Intensifier Tubes have almost 50% less imperfections than our Bravo tubes, as well as a minimum of 2000 FOM. Zone 1 is kept completely clear of blemishes, giving you a great picture of your target of interest. Designed for a more experienced end-user, NV systems with Pinnacle IITs can be found in the hands of law enforcement, hunters and enthusiasts.

Our Pinnacle 2376 Image Intensifier Tubes share the same impeccable picture quality as our Pinnacle Elite tubes, but guarantee a minimum of 2376 FOM.

Image Intensifier Tube Generation Gen 3 Thin-Filmed Manual Gain Control
Resolution (lp/mm) 64-81 lp/mm
Zone 1 Spots Maximum Allowed No spots of 0.003" or greater allowed
Zone 2 Spots Maximum Allowed 0 - 0.009" to 0.012" / 1 - 0.006" to 0.009" / 2 - 0.003" to 0.006"
Zone 3 Spots Maximum Allowed 0 - 0.009" to 0.012" / 2 - 0.006" to 0.009" / 3 - 0.003" to 0.006"
Manual Gain Control Yes
Bright Light Cut-Off Yes
Infrared Illuminator Yes (Built-in)
IR Indicator Yes (in FOV)
Magnification 1x
Lens System f1.2; 27mm
Field of View (degrees) 40°
Focus Range (m) 0.25m to infinity
Diopter Adjustment -6 to +2 dpt
Power Supply 1x CR123A (3V) or 1x AA (1.5V) battery
Battery Life (hours) 12 hours (1.5V) / 20 hours (3V) at 20° C
Low Battery Indicator Yes (in FOV)
Environmental Rating IP67
Operating Temperature -51° C to +49° C (-60° F to +120° F)
Storage Temperature -51° C to +85° C (-60° F to +185° F)
Dimensions (mm/in) 137 x 73 x 118mm / 5.4 x 2.8 x 4.6in
Weight (kg/oz) 0.64kg / 1.4 lbs
Warranty 3 years w/ registration
