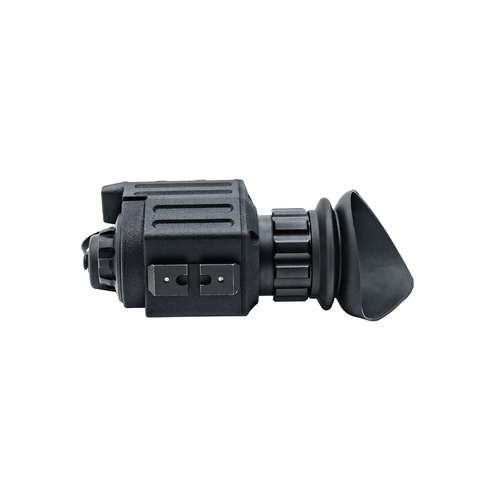

The Armasight Sidekick 320 Mini Thermal Monocular is is the smallest fully functional 12-micron 320 thermal imaging monocular on the market. This unit boasts a fast 60Hz frame rate for smooth operation and industry-best, outstanding visual acuity, based on Armasight's Iron Wolf thermal technology platform. Weighing under 210 grams, the Sidekick can be used as a handheld mini-monocular or can be headset/helmet mounted utilizing the built-in mini-rail for hands-free operation. The high definition 1024x768 OLED display provides a crisp image, with iconography providing key information. The Sidekick utilizes simplified 3 button controls that allow for easy manipulation in the field and offers one-touch in-unit video recording to capture all of your experiences.
Package includes:
- Sidekick 320 Mini Thermal Monocular
- 2 x CR123A Battery
- USB-C Cable
- Soft Case
- Product Manual
- Multiple color palettes
- Intuitive 3-button controls
- 1 hour runtime on 1 CR123A battery at 68° F (20° C)
- Image detail enhancement
- Dovetail mini-rail included for helmet mounting (with options mount)
- Video recording and image capture
- USB video stream
- USB-C interface for external devices
- Compass
- Battery status indicator
- ULTEM composite body and ergonomic design
- Designed and assembled in the USA from U.S. and global components
| Detector Type | ArmaCORE™ |
| Core Resolution | 320x240 |
| Core Pixel Size | 12 µm |
| Lens System | F/1.00; 9.1mm fixed focus |
| Optical Magnification | 1x |
| Digital Zoom | 1 - 4x |
| Detection Range (on a Human Sized Target) | 331 m |
| Eye Relief | 15mm |
| FOV (H x V) | 24.18° x 18.13° |
| Diopter Adjustment | -5 to +5 dpt |
| Display | 1024x768 XGA OLED |
| Graphics | Active On-Screen and Iconology |
| Refresh Rate | 60 Hz |
| Memory | 4 hrs of Video |
| Dimensions (mm/in) | 145x50x65mm / 5.7x1.9x2.6in |
| Weight (with mount) | 208g / 0.46lbs |
| Battery Life | Up to 1hr @ 68°F |
| Battery Type | 1x CR123A 3V |
| Wireless | None |
| Operating Temperature (F) | -40° to +122° |
| Waterproof | IP67 |
| Image Processing | Digital Enhancement |
| Warranty | 3 years w/ registration |
