InfiRay Outdoor

AFFO Series

  • Sale
  • Regular price $749.00


InfiRay AFFO Series Thermal Imaging Monocular

The AFFO Series handheld thermal imaging monocular is an entry-level thermal monocular for hunting users, featuring both a fashionable appearance and a more compact size. The AFFO Series uses a self-developed 12μm detector to produce crisp images and supports photo taking and video recording with its built-in high-speed 32GB storage capacity.

  • High-Performance Detector — The AFFO Series adopts 12 µm uncooled Vox thermal imaging sensor, the self-developed high-performance sensor enables crisp HD images.
  • New Appearance Design & Compact Size —  Rounded curve-design body fits human hand shape, making it more comfortable to hold. With the compact size, it is easier to carry with along your adventure.
  • HDMI Interface to display HD videos on external devices — Designed with HDMI interface (high-definition multimedia interface) uses full digital signal transmission, which not only provides full digital video signal, but also transmits audio at the same time. This device can be directly connected to HD screens, laptops, etc. for high-quality display.
  • Long Battery Life — Low power elements used in AFFO Series provide sufficient operation time. Up to 9.5 hours operational battery life.
  • Additional Practical Functions — The AFFO Series features additional practical functions including stadiametric rangefinding and PIP.  Its adapter is equipped with multiple travel charging headers to meet the needs of use in different countries and

    regions.

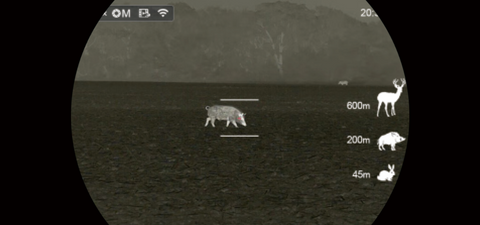

    • Stadiametric Rangefinding:  Facilitate confirmation of prey distance and provide position reference for hunting.

    • PIP: The screen of cursor position is magnified twice to highlight the target and assist in observing the target details.

  • More images modes to cope with different scenarios - Hot target highlight mode provides better object highlighting capability with more options of white hot, black hot, red-hot and color palette. Wider detection and operating temperature ranges with hotspot tracking function.
  • Upgraded Protection -
    • Upgraded lens protection: Durable rigid plastic lens cap with higher hardness and impact resistance;

    • Upgraded waterproofing: External screen is used in rainy days for outdoor scenarios to prevent water flowing into the interface.

  • 32GB Built-in Memory - The 32GB memory of AFFO Series makes it possible to record all night, meeting the requirements of whole-hunting process recording.
AP13 AL19 AL25
Sensor resolution 256 x 192 384 x 288 384 x 288
Sensor pixel pitch 12 µm 12 µm 12 µm
Sensor NETD ≤ 40 mK ≤ 40 mK ≤ 40 mK
Frame Refresh Rate 25 Hz 50 Hz 50 Hz
Objective Lens 13 mm 19 mm 25 mm
Field of View 13.5° x 10.1° 13.8° x 10.4° 10.5° x 7.9°
Digital Zoom 1x, 2x 1x, 2x, 4x 1x, 2x, 4x
Display Type LCOS 720x540 OLED 640x400 OLED 640x400
Diopter Adjustment -3 ~ +1 -7 ~ +2 -7 ~ +2
Detection (Target size 1.7m x 0.5m) 675 m 986 m 1298 m
Battery Type Internal Li-ion battery Internal Li-ion battery Internal Li-ion battery
Max. Battery Life 9.5 hrs @ 22° C 7.5 hrs @ 25° C  7.5 hrs @ 25° C
External Power Supply 5V (Type C) 5V (Type C) 5V (Type C)
Memory Capacity 32 GB 32 GB 32 GB
Ingress Protection Rating IP67 IP67 IP67
Wi-Fi/App Support (InfiRay Outdoor) Support (InfiRay Outdoor) Support (InfiRay Outdoor)
Operating Temperature -10°C ~ +50°C -20°C ~ +50°C -10°C ~ +70°C
Dimension 160 x 60 x 60 mm 202 x 65 x 64 mm 169 x 60 x 60 m
Weight ≤340 grams ≤350 grams ≤350 grams
