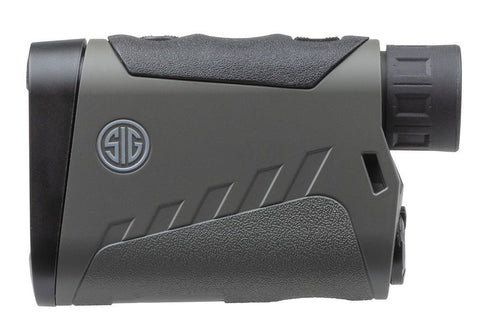

Sig Sauer KILO3K™ Ballistic Range Finding Monocular
The SIG SAUER KILO3K™ 6x22 mm laser rangefinder monocular has a maximum reflective range of 3,000 yards. The KILO3K offers astounding performance, simplicity, and value, combining the industry's fastest Lightwave™ DSP, Digital Signal Processing engine with streamlined setup and operation. KILO3K rangefinder modes of operation include Line-Of-Sight (LOS), Angle Modified Range (AMR). Archery Mode (ARCH), Applied Ballistics Ultralight (BDX-U), and Applied Ballistics External (BDX-X). In BDX-U mode, the KILO3K utilizes the shooters ballistic profile and measures environmental parameters in real-time to instantly calculate precise windage and elevation solutions in either MOA or MILS. This information is displayed in the rangefinder and is also communicated via Bluetooth™ to any paired BDX sight to provide the exact illuminated holdover aiming point.
All new KILO™ rangefinders connect with the BaseMap™ app to provide remote waypoints on ranged targets and can be fully configured with the SIG SAUER BDX App. Learn more about connecting with BaseMap™. All KILO K Series rangefinders leverage Low Energy / Long Range Bluetooth 5.x for multipoint Bluetooth connections and improved connectivity to BDX enabled riflescopes and sights. The KILO3K™ ships with a black/grey carry pouch and lanyard.
The KILO3K™ provides line of sight or angle modified range information accurate to ±1 yard or meter out to 500 yards; ±2 yards from 500 - 3000 yards. Range is displayed in 0.1 yard or meter resolution.
| Ranging Performance in Hyperscan Mode | |
| Reflective Target | Up to 3,000 yds |
| Trees | Up to 1,800 yds |
| Deer | Up to 1,500 yds |
Features:
- Onboard temperature, pressure, and humidity sensors for accurate real-time ballistic calculations.
- 5 target modes: First, Best, Last, Fog, Extended Range.
- 5 range modes: BDX-U, BDX-X, AMR, LOS, Archery.
- BDX™ 2.0 enabled, providing your BDX riflescope with an automatically illuminated holdover dot through Bluetooth pairing.
- Embedded Applied Ballistics Ultralight (BDX-U) with bullet database and support for G1/G7 drag curves.
- Revolutionary Lightwave™ DSP Technology for the fastest and longest distance rangefinder engine.
- 6x22 mm monocular with SpectraCoat™ anti-reflection coatings for superior light transmission and optical clarity.
- HyperScan provides 4 range updates per second in scan mode while RangeLock reports the lastrange result when ranging distant targets.
- Red OLED display for daytime and low light use.
- Lumatic™ Display automatically calibrates display brightness to changing ambient light conditions.
- Compact, lightweight polymer housing with eyecup and diopter adjustment.
- Units in yards or meters to tenth Y/M resolution.
- Free downloadable SIG BDX App for your smartphone. iOS and Android supported.
- Drop remote waypoints With BaseMap™ App
- IPX-7 waterproof
The KILO3K™ is covered by the SIG SAUER® ELECTRO-OPTICS Infinite Guarantee.
Sig Sauer Electro-Optics Technology:
LensArmor™ - Abrasion-resistant lens coatings for extreme durability ensure the lenses on your scope will stay sharp, bright, and clear.Lumatic™ - The most advanced display on the market. Our OLED (Organic Light Emitting Diode) display has the largest dynamic range providing for high brightness in bright sunlight or snow conditions, yet will dim down to near nightvision levels at dusk and dawn. No other display offers this adaptive ability to prevent your pupil from constricting in low-light causing you to no longer be able to see your target.
Stealth ID™ - Electro-Optics industrial design inspired by our legendary firearms; deflection armor trapezoidal surfacing breaks up the shape and visibility of the optic along with pistol slide serrations and grip checkering to add function to the form of all SIG SAUER electro-optics.
AMR™ - Ranging technology uses an on-board inclinometer that reads incline/decline angle and modifies the effective ballistic shooting range to the target. AMR is the equivalent horizontal range and integrates perfectly when used in combination with SIG Ballistic Turret Dials.
LightWave DSP™ - Lightwave DSP (Digital Signal Processing) engine leverages HyperScan– an advanced power management technique that provides the fastest refresh rate in scan mode (4 times per second) even at distances over a mile. Our DSP engine uses the latest generation Field Programmable Gate Array (FPGA) running sophisticated signal processing algorithms to reduce false positives while finding weak or distant targets.
SpectraCoat™ - Highly efficient, ultra-wide broadband, anti-reflection lens coatings reduce surface reflections to extremely low levels across the entire visible spectrum providing superior light transmission.
Ballistic Data Exchange 2.0 - Ballistic Data Exchange is a rangefinder and riflescope system that uses your ballistics, environmental conditions and Bluetooth to illuminate the exact holdover dot. BDX 2.0 is the Software Update that includes a new easy mode for quick BDX setup out of the box, including: BDX kits come paired and bonded. BDX Quickbond™ system gives users the ability to bond two BDX enabled devices without the smartphone app. BDX equipped KILO™ rangefinders preloaded with ballistic groups for centerfire rifles, muzzleloaders and crossbows. 100% compatible with BDX smartphone app to access the advanced BDX features in configuration options.
ONX - The OnX Hunt remote waypoint feature has been integrated into our BDX 2.0 App.
Included in the box:
- KILO3K™ Rangefinding Binocular
- CR2 Battery (1)
- Premium Carry Pouch
- Quick Start Guide
- Ballistic Group Card
- Lanyard
- SIG SAUER’S Patent Pending Ballistic Data Xchange™ Technology utilizes, low energy Bluetooth with embedded Applied Ballistics Ultralight BDX-U, supports Applied Ballistics External BDX-X and works with the free BDX™ App to sync custom gun profiles and environmental conditions to your KILO® and pair your KILO to any BDX enabled riflescope. BDX-U provides ballistic solutions out to 800 meters while BDX-X supports any distance and works with external devices with AB Elite.
- 6x22 mm monocular with SpectraCoat™ anti-reflection coatings for superior light transmission and optical clarity.
- Revolutionary Gen II Lightwave™ DSP Technology for the fastest and longest distance rangefinder engine.
- HyperScan provides 4 range updates per second in scan mode while RangeLock reports the last range result when ranging distant targets.
- Features Line of Sight, Angle Modified Range, Archery Mode, BDX Ultrlight, and Extended Range Modes
- First, Best, Last, Extended Range (XR), and Fog Target Modes of operation.
- Projected, segmented transparent OLED display for daytime and low light use.
- Lumatic™ Display automatically calibrates display brightness to changing ambient light conditions.
- Compact, lightweight polymer housing and eyecup with integral diopter adjustment.
- Simplified user interface with RANGE and MODE buttons only.
- Rangefinder configuration can now be done through the free SIG BDX™ App.
- Displays windage and elevation within KILO HUD for every target that is scanned.
- BDX 2.0® with 8 onboard, embedded ballistic groups along with QuickBOND® to bond your KILO with a BDX enabled sight or riflescope without having to use the BDX App.
- Covered by SIG SAUER’s INFINITE Guarantee™ and Electronics Limited Warranty, see website for full details.
| Specifications | KILO3K |
| Color | Ranger Green |
| Magnification | 6x |
| Objective lens diameter | 22 mm |
| Height | 2.9 in |
| Length | 4.6 in |
| Width | 1.3 in |
| Battery | (1) CR2 |
| Display type | Segmented OLED |
| Reticle | Circle |
| Weight with battery | 5.6 oz |
| Eye pupil | 3.6 mm |
| Eye relief | 18 mm |
| Angular field of view | 6.5° |
| Field of view @ 100 yds | 34.07 ft |
| Diopter adjustment range | +/- 3 dpt |
| Run time | 4000 ranges |
| Range on deer | Up to 1500 yds |
| Range on trees | Up to 1800 yds |
| Max reflective | Up to 3000 yds |
| Laser divergence | 1.5x0.2 MRAD |
| Range response time | .25 sec |
| Scanning | Yes |
| BDX enabled | Yes |
| Image stabilization | No |
| Carry case included | Yes |
| Warranty | SIG SAUER Electro-Optic Infinite Guarantee |
