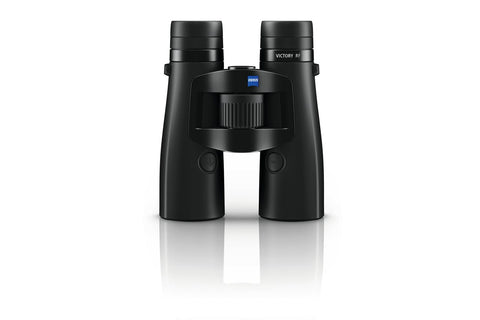

Turning sense into certainty. The ZEISS Victory RF Binocular combines a low-light binocular with ZEISS quality glass, a laser rangefinder and a real-time ballistic calculator all in one unit. The serious hunter or long range shooter can quickly obtain range and accurate bullet drop information in seconds.
Experienced hunters can always rely on their senses. Nevertheless, with the right equipment, they can go further than this and transform intuitions into certainties.
The Rangefinder System is a laser rangefinder with an integrated real-time ballistics computer. The consideration of all relevant factors and customization with the aid of the ZEISS Hunting App ensures precisely placed shots at any distance. The RF family offers a choice of four models: the RF 8 × 42 and 10 × 42 for daylight hunting and the RF 8 × 54 and 10 × 54 for hunting into the twilight hours.
The rangefinder determines the precise target distance up to a maximum range of 2,500 yards.
Bluetooth synchronization with ZEISS Hunting AppThe capabilities of the rangefinder system are perfected by the ability to synchronize it with the ZEISS Hunting App via Bluetooth. Every measurement takes the physical and environmental factors, such as temperature and air pressure, into account when making the calculation.
Transfer of personal ballistic dataStorage capability for up to nine personalized ballistic profiles, that can be set up within the ZEISS Hunting App. Thanks to the Bluetooth function it is possible to import personal ballistic data from the ZEISS Hunting App to the Victory RF.
Calculate precise setting for BDC (ASV)The various measuring functions of the rangefinder take a multitude of relevant data into account and use them to calculate the precise setting for the bullet drop compensator (BDC or ASV).
There are always exciting things to be seen in the world of nature – even in wet weather. This is why ZEISS developed LotuTec®. A coating for the lenses of binoculars and spotting scopes that enables a clear and unhindered view in all weather conditions.
ZEISS T* CoatingZEISS T* coating is a guarantee of the brilliant, high-contrast images which you will experience above all in adverse light conditions and in the twilight. Behind it, however, there is no specific formula for building up the layers. Instead, it is a technology that is constantly adjusted to suit new glass materials and requirements, which varies from lens to lens.
RF 8x42 | RF 10x42 | RF 8x54 | RF 10x54 | |
Magnification | 8x | 10x | 8x | 10x |
Effective lens diameter | 42 mm | 42 mm | 54 mm | 54 mm |
Exit pupil diameter | 5.3 mm | 4.2 mm | 6.8 mm | 5.4 mm |
Twilight factor | 18.3 | 20.5 | 20.8 | 23.2 |
Field of view at 1,000 m | 135 m (405 ft) | 115 m (345 ft) | 120 m (360 ft) | 110 m (330 ft) |
Subjective viewing angle | 61º | 63° | 54° | 61° |
Close focusing distance | 2.5 m (8.2 ft) | 2.5 m (8.2 ft) | 3.5 m (11.5 ft) | 3.5 m (11.5 ft) |
Diopter adjustment range | - 4.0 | + 4.0 dpt | - 4.0 | + 4.0 dpt | - 4.0 | + 4.0 dpt | - 4.0 | + 4.0 dpt |
Exit pupil distance | 16 mm | 16 mm | 14 mm | 14 mm |
Pupil distance | 53.5 - 76 mm | 53.5 - 76 mm | 58.5 76 mm | 58.5 76 mm |
Lens type | FL | FL | FL | FL |
Prism system | Abbe-König | Abbe-König | Abbe-König | Abbe-König |
Coating | LotuTec | LotuTec | LotuTec | LotuTec |
Nitrogen filled | Yes | Yes | Yes | Yes |
Waterproof | 100 mbar | 100 mbar | 100 mbar | 100 mbar |
Operating temperature ºC (ºF) | -30/+63 (-22/+145) | -30/+63 (-22/+145) | -30/+63 (-22/+145) | -30/+63 (-22/+145) |
Measuring range | 10-2,300 m (11-2,500 yds) | 10-2,300 m (11-2,500 yds) | 10-2,300 m (11-2,500 yds) | 10-2,300 m (11-2,500 yds) |
Measuring accuracy | ± 1-600 / ± 0.5% / > 600 m (yds) | ± 1-600 / ± 0.5% / > 600 m (yds | ± 1-600 / ± 0.5% / > 600 m (yds | ± 1-600 / ± 0.5% / > 600 m (yds |
Measuring duration | < 0.3 sec | < 0.3 sec | < 0.3 sec | < 0.3 sec |
Laser wavelength | 905 nm | 905 nm | 905 nm | 905 nm |
Laser beam divergence | 1.6 x 0.5 nm | 1.6 x 0.5 nm | 1.6 x 0.5 nm | 1.6 x 0.5 nm |
Battery | 1 x 3V Type CR2 | 1 x 3V Type CR2 | 1 x 3V Type CR2 | 1 x 3V Type CR2 |
Battery Life at +20º C (68º F) | > 2.500 x | > 2.500 x | > 2.500 x | > 2.500 x |
Length | 166 mm (6.5 in) | 166 mm (6.5 in) | 195 mm (7.7 in) | 195 mm (7.7in) |
Width w/ eye spacing of 65 mm | 130 mm (5.1 in) | 130 mm (5.1 in) | 141 mm (5.6 in) | 141 mm (5.6 in) |
Weight | 930 g (32.8 oz) | 960 g (33.9 oz) | 1095 g (38.6 oz) | 1130 g (39.9 oz) |
Neck Strap | Neoprene | Neoprene | Neoprene | Neoprene |
Objective Cover | Yes | Yes | Yes | Yes |
Rain Protection Cap | Yes | Yes | Yes | Yes |
Carry Case | Yes | Yes | Yes | Yes |
Warranty | 2 years | 2 years | 2 years | 2 years |
