Nocpix

LUMI P13

  • Sale
  • Regular price $619.00

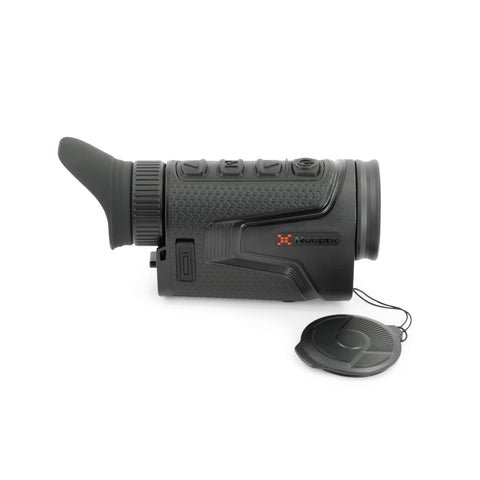

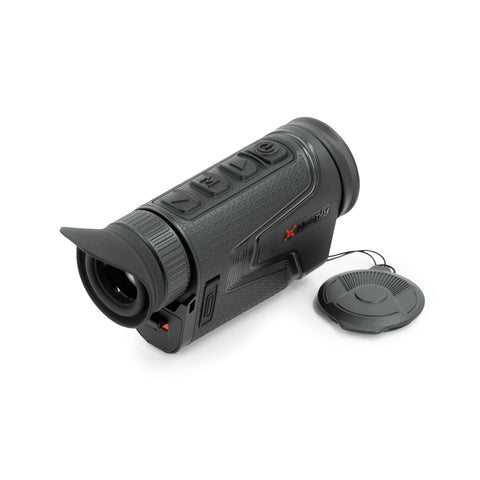

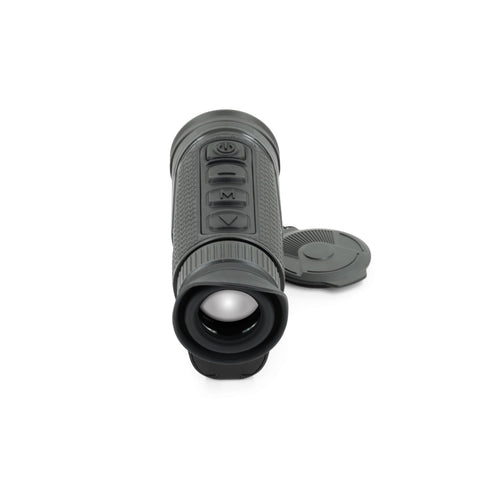

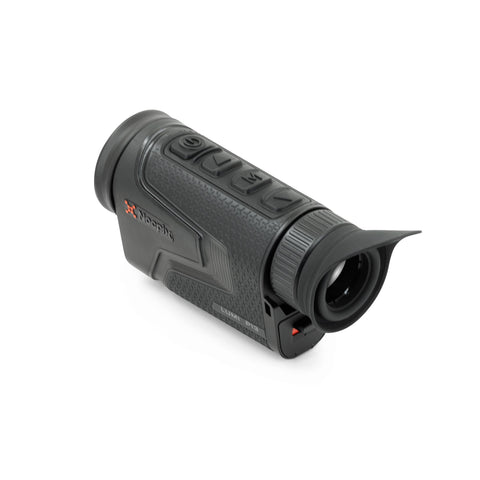

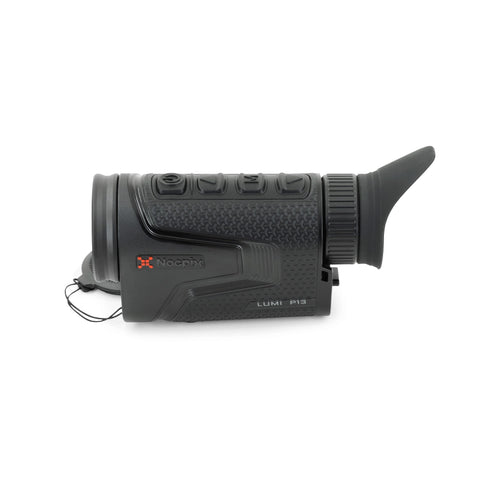

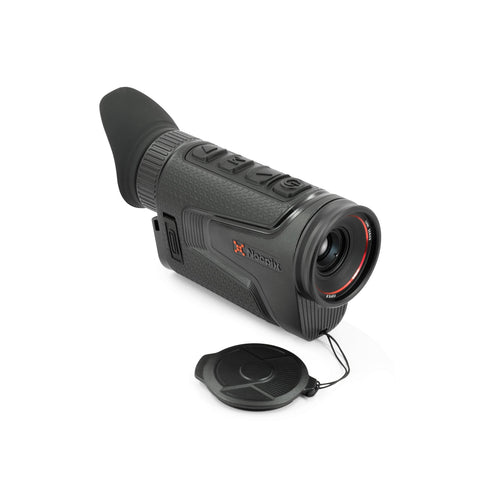

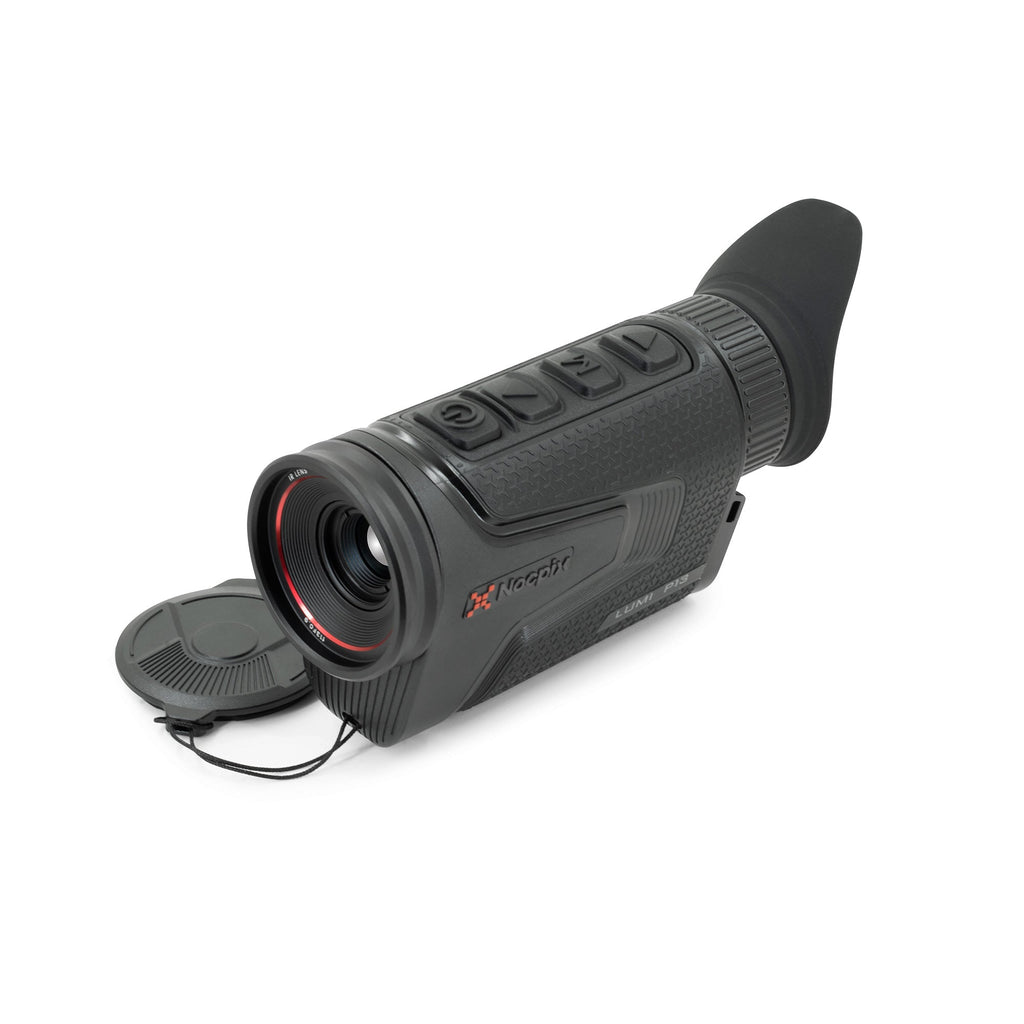

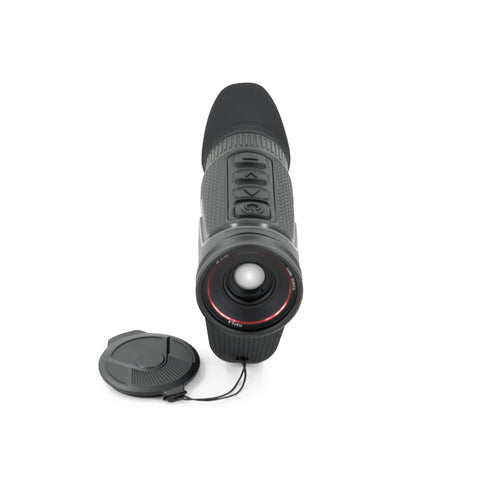

Nocpix LUMI P13 Compact Thermal Monocular

LUMI brings the power of thermal observation devices to a compact and user-friendly form-factor for hunters on-the-go. The LUMI series of handheld thermal monoculars features a high quality thermal sensor, available in 256x192 resolution (P13), 384x288 resolution (L19) or 640x512 resolution (H35), all paired with a 1024x768 AMOLED display. Available models offer either a 2.0x (P13 and L19), or 2.5x base magnification (H35) for a wider field of view, or a 4x base magnification (L35) for identifying targets at greater distances.

Our advanced Reality+ image processing algorithm and a ≤18 mK NETD (thermal sensitivity) rating provide sharp, high-contrast images. The P13 model has ≤20 mK NETD. Powering the LUMI is simple and affordable using common interchangeable 18650 style batteries. As a powerful tool for scouting and scanning, LUMI was designed to be as compact and ergonomic as possible while still offering impressive image detail and clarity; LUMI weighs 12 ounces and easily fits in the palm of the hand, a pocket, or the included MOLLE-compatible case.

Key features include:

  • Lightweight and compact design easily fits in a pocket or the include MOLLE-compatible pouch.
  • Weatherproof rubberized texture increases durability and is not cold to the touch.
  • Powered by a common 18650 style rechargeable battery with a spare battery included.
  • Advanced R+ image processing provides enhances image quality during digital zoom.
  • Onboard photo, video, and audio recording.
  • Comfortable ambidextrous vertical design.

Package includes: LUMI L19 Thermal Monocular, 18650 Battery x2, 18650 Battery Charger, Data Cable, Lens Cloth, Soft-sided Case, Neck Strap, Quick Start Guide.

ITAR Control Statement

This product is subject to the International Traffic in Arms Regulations (ITAR). You many not export, re-export, resell, transfer or otherwise dispose of this product to any other country without first obtaining approval from the U.S. Department of State, Directorate of Defense Trade in accordance with the ITAR, Title 22, and Code of Federal Regulations Part 120-130. Diversion contrary to U.S. law is prohibited.

  • Nocpix 384 Core, 256x192 resolution, 12 micron sensor, ≤20 mK thermal sensitivity.
  • Manual focus 13 mm f/0.9 germanium lens provides a sharp image and 2x base magnification.
  • Lightweight and compact design fits easily in a pocket or the included MOLLE-compatible pouch.
  • Weatherproof rubberized texture increases durability and is not cold to the touch.
  • In-line button design easy to use, even with gloves.
  • Powered by a common 18650 style rechargeable battery with a spare battery  included.
  • Advanced R+ image processing provides enhanced image quality during digital zoom.
  • Onboard photo, video and audio recording.
  • 32 GB internal storage for photo and video recording.
  • Comfortable ambidextrous vertical design.
LUMI P13
Resolution 256x192
Pixel Size 12 µm
Frame Rate 50 Hz
Image Processing Reality+
Core Nocpix 256
Thermal Sensitivity ≤20 mK
Objective Lens 13 mm; f/0.9
Optical Magnification 2x
Digital Zoom 4x, stepped
Field of View 13.5º x 10.1º
Detection Range 730 yds
Display Type AMOLED
Display Resolution 1024x768
Color Palettes 7 - White Hot, Black Hot, Red Hot, Color, Crimson, Viridian, Violet
Picture-In-Picture Yes
Rangefinder None
Eye Relief 25 mm
Diopter Range -5 to +5
Onboarding Recording Video & Image
Onboard Storage 32 GB
Wireless Connectivity Video and Image via App.
Data/Power Connector USB-C
Power Supply USB-C External,  Removable IRB-2 Li-ion Battery x2 (4 hrs each)
Start-Up Time < 10 Seconds, Instant from Standby
Size 5.47" x 1.85" x 2.91"
Weight 10.93 oz
Housing Material Polymer with Rubber Overmold
Ingress Protection IP67
Operating Temperature -4°F ~ +122°F
Warranty 5 years
