Offering 24× magnification and side parallax adjustment, the Conquest® V4 6-24x50 riflescope is ideal for hunting, precision shooting and long-range applications.
Uncompromising quality and ruggedness – the Conquest® V4 line of high-performance riflescopes combines the tried-and-true ZEISS optics concept with a rugged and functional design. Equipped with 4x zoom and functional and fully reliable mechanics, these scopes set a new standard in their class.
Designed and Engineered in Germany
Absolute reliability: the mechanical systems stand the test of harsh recoil, extreme temperatures and abusive field conditions.
90% Light Transmission
Higher definition glass produces 90% to-the-eye light transmission, great low-light performance and excellent target resolution across the entire magnification range.
Proven 4x Zoom
Relevant magnification ranges, with a 4x zoom ratio, provide a high level of versatility across a wide array of applications.
Generous Eyebox
The friendly and forgiving eye box, coupled with abundant eye relief and the wide field of view, affords the shooter fast and full target acquisition, which helps to enable swift and accurate shot placement.
Optical Perfomance
Higher definition glass, enhanced with ZEISS T* light transmission coatings and LotuTec protective lens coating, produces 90% to-the-eye light transmission, great low-light performance and excellent target resolution across the entire magnification range. When combined, these features and benefits create a best-in-class experience.
External Elevation Turret
Easy to manipulate, positive, tactile and highly repeatable turret, with Ballistic Stop and large range of adjustment, provides the shooter with maximum flexibility needed for challenging targets, no matter how far down range.
Side Parallax Adjustment
For applicable models, 50 yards to infinity to ensure absolute best images and most accurate shooting solutions.

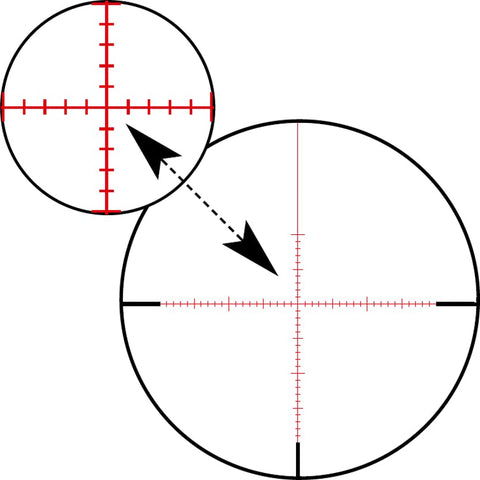

Second Focal Plane Reticle Options
Available with the ZEISS MOA-based smart reticles: ZBR and ZMOA. ZEISS has introduced the newer ZMOAi-T20 thin line reticle. These reticles feature fine line subtensions to ensure minimum target coverage and maximum target visibility.
Magnification | 6 x - 24 x |
---|---|
Focal Plane | Second |
Effective lens diameter | 44.9 mm - 50 mm |
Exit pupil diameter | 7.5 mm - 2.1 mm |
Twilight factor | 16.4 - 34.6 |
Field of view at 100 yds | 19 ft - 4.8 ft |
Angular field of view, real | 3.6º - 0.9º |
Diopter adjustment range | - 3.0 | + 2.0 dpt |
Eye relief | 3.5 in |
Parallax setting | 50 yds - ∞ |
Elevation adjustment range | 80 MOA |
Windage adjustment range | 60 MOA |
Click value | 1/4 MOA |
Elevation turret | External with ballistic stop |
Windage turret | Capped |
Center tube diameter | 30 mm |
Eyepiece tube diameter | 44 mm |
Objective lens tube diameter | 56 mm |
Lens coatings | LotuTec® / ZEISS T* |
Fogproof | Nitrogen purged |
Waterproof | 400 mbar (submerged 13 ft for 2 hrs) |
Operating temperature ºF | -4º / +122º |
Length | 14.5 in |
Weight | 22.5 - 23.0 oz |
Reticles | ZBR-1 / ZMOA-1 / ZMOAi-1 / ZMOAi-T20 |
Warranty (USA & Canada) | Limited Lifetime & 5-Year No Fault |
