SIG SAUER CANYON Range Finding Monocular
Introducing SIG SAUER’S all-new CANYON™ 10x42 RANGEFINDING BINOCULAR. Blending SIG’S experience in designing best-in-class laser rangefinder technologies with premium glass optics, The CANYON RANGEFINDING BINOCULAR provides a single feature-rich solution for every hunter and shooter. Leveraging the revolutionary Lightwave™ DSP technology, the CANYON RANGEFINDING BINOCULAR’S powerful rangefinder engine provides lightning-quick data out to 4,000 yards on reflective surfaces and 1,500 yards on non-reflective targets like deer and elk. Eight onboard ballistic groups provide shooting solutions in either MRAD or MOA, as well as SIG’s proprietary Archery Mode, the CANYON RANGEFINDING BINOCULAR brings accuracy to your fingertips in a split second. Its bright red OLED illuminated display makes it easy to read data no matter your environment, while SpectraCoat™ anti-reflective lens coatings provide superior light transmission and optical clarity. Gone are the days of ballistic charts taped to lens caps or rifle stocks. Lighten your load afield and let the CANYON RANGEFINDING BINOCULAR do your heavy lifting.
Features:
- 10x42 mm binocular with SpectraCoat™ anti-reflection coatings for superior light transmission and optical clarity.
- Revolutionary Lightwave™ DSP Technology for the fastest and longest distance rangefinder engine.
- Scan mode ranges and updates four times per second, and RangeLock reports the closes, furthest, or most recent range result.
- Ranging modes include: Line of Sight, Angle Modified Range, Ballistic Groups, and Archery Mode.
- 8 onboard ballistic groups provide shooting solutions in either MOA or MRAD.
- Archery Mode gives accurate shoot-to distances for up/down angle shots.
- Range displayed in either yards or meters to one-tenth y/m resolution.

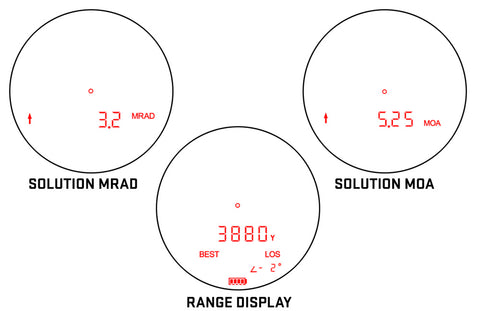

- Red OLED illuminated display.
- Rugged rubber armor with eyecup and diopter adjustment.
| Ranging Performance in Hyperscan Mode | |
| Reflective Target | Up to 4,000 yds |
| Trees | Up to 2,000 yds |
| Deer | Up to 1,500 yds |
The CANYON is covered by the SIG SAUER® ELECTRO-OPTICS Infinite Guarantee.
Sig Sauer Electro-Optics Technology:
AMR™ - Ranging technology uses an on-board inclinometer that reads incline/decline angle and modifies the effective ballistic shooting range to the target. AMR is the equivalent horizontal range and integrates perfectly when used in combination with SIG Ballistic Turret Dials.LightWave DSP™ - Lightwave DSP (Digital Signal Processing) engine leverages HyperScan– an advanced power management technique that provides the fastest refresh rate in scan mode (4 times per second) even at distances over a mile. Our DSP engine uses the latest generation Field Programmable Gate Array (FPGA) running sophisticated signal processing algorithms to reduce false positives while finding weak or distant targets.
SpectraCoat™ - Highly efficient, ultra-wide broadband, anti-reflection lens coatings reduce surface reflections to extremely low levels across the entire visible spectrum providing superior light transmission.
Included in the box:
- CANYON Rangefinding Binocular
- CR2 Lithium Battery (1)
- Nylon Carry Pouch
- Neck Strap
- Owners Manual
- 10x42 mm binocular with SpectraCoat™ anti-reflection coatings for superior light transmission and optical clarity.
- Revolutionary Gen II Lightwave™ DSP Technology for the fastest and longest distance rangefinder engine.
- HyperScan provides 4 range updates per second in scan mode while RangeLock reports the last range result when ranging distant targets.
- Features Line of Sight, Angle Modified Range, Ballistic Groups, and Archery Modes of Operation.
- First, Best, and Last Target Modes of operation.
- Projected, segmented transparent OLED display for daytime and low light use.
- Compact, lightweight polymer housing and eyecup with integral diopter adjustment.
- Simplified user interface with RANGE and MODE buttons only.
- Covered by SIG SAUER’s INFINITE Guarantee™ and Electronics Limited Warranty, see website for full details.
| Specifications | CANYON 10x42 |
| Color | Gray |
| Magnification | 10x |
| Objective lens diameter | 42 mm |
| Height | 2.7 in |
| Length | 5.8 in |
| Width | 5.4 in |
| Battery | (1) CR2 |
| Display type | OLED |
| Reticle | Circle |
| Weight with battery | 29 oz |
| Eye pupil | 4.2 mm |
| Eye relief | 14.7 mm |
| Angular field of view | 6.1° |
| Diopter adjustment range | +/- 3 dpt |
| Run time | 4000 ranges |
| Range on deer | Up to 1500 yds |
| Range on trees | Up to 2000 yds |
| Max reflective | Up to 4000 yds |
| Laser divergence | 2.6x0.13 MRAD |
| Range response time | .25 sec |
| Scanning | Yes |
| BDX enabled | No |
| Image stabilization | No |
| Carry case included | Yes |
| Warranty | SIG SAUER Electro-Optic Infinite Guarantee |
