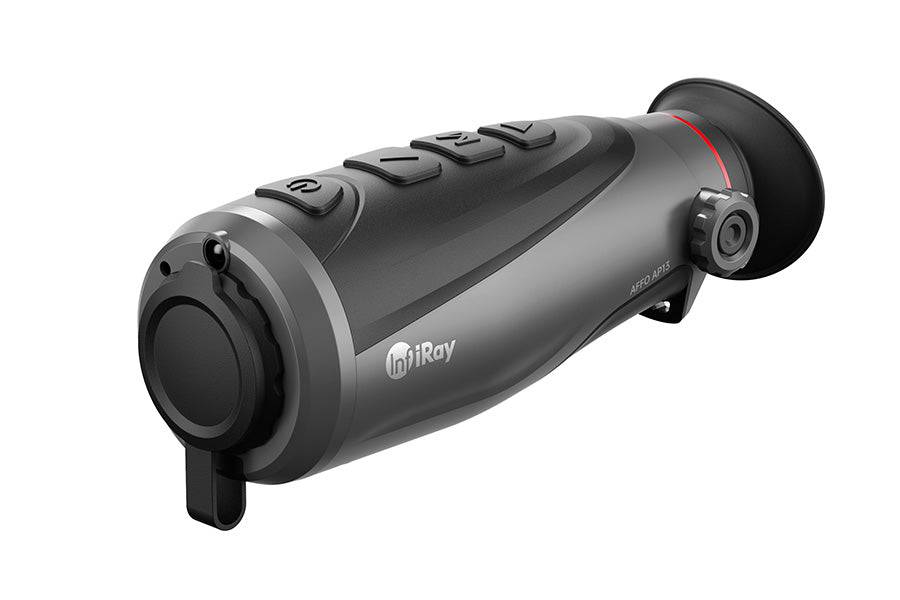

InfiRay AFFO Series Thermal Imaging Monocular
The AFFO Series handheld thermal imaging monocular is an entry-level thermal monocular for hunting users, featuring both a fashionable appearance and a more compact size. The AFFO Series uses a self-developed 12μm detector to produce crisp images and supports photo taking and video recording with its built-in high-speed 32GB storage capacity.
- High-Performance Detector — The AFFO Series adopts 12 µm uncooled Vox thermal imaging sensor, the self-developed high-performance sensor enables crisp HD images.
- New Appearance Design & Compact Size — Rounded curve-design body fits human hand shape, making it more comfortable to hold. With the compact size, it is easier to carry with along your adventure.
- HDMI Interface to display HD videos on external devices — Designed with HDMI interface (high-definition multimedia interface) uses full digital signal transmission, which not only provides full digital video signal, but also transmits audio at the same time. This device can be directly connected to HD screens, laptops, etc. for high-quality display.
- Long Battery Life — Low power elements used in AFFO Series provide sufficient operation time. Up to 9.5 hours operational battery life.
Additional Practical Functions — The AFFO Series features additional practical functions including stadiametric rangefinding and PIP. Its adapter is equipped with multiple travel charging headers to meet the needs of use in different countries and
Stadiametric Rangefinding: Facilitate confirmation of prey distance and provide position reference for hunting.
PIP: The screen of cursor position is magnified twice to highlight the target and assist in observing the target details.
- More images modes to cope with different scenarios - Hot target highlight mode provides better object highlighting capability with more options of white hot, black hot, red-hot and color palette. Wider detection and operating temperature ranges with hotspot tracking function.
Upgraded Protection -
Upgraded lens protection: Durable rigid plastic lens cap with higher hardness and impact resistance;
Upgraded waterproofing: External screen is used in rainy days for outdoor scenarios to prevent water flowing into the interface.
- 32GB Built-in Memory - The 32GB memory of AFFO Series makes it possible to record all night, meeting the requirements of whole-hunting process recording.
|Sensor resolution||256 x 192||384 x 288||384 x 288|
|Sensor pixel pitch||12 µm||12 µm||12 µm|
|Sensor NETD||≤ 40 mK||≤ 40 mK||≤ 40 mK|
|Frame Refresh Rate||25 Hz||50 Hz||50 Hz|
|Objective Lens||13 mm||19 mm||25 mm|
|Field of View||13.5° x 10.1°||13.8° x 10.4°||10.5° x 7.9°|
|Digital Zoom||1x, 2x||1x, 2x, 4x||1x, 2x, 4x|
|Display Type||LCOS 720x540||OLED 640x400||OLED 640x400|
|Diopter Adjustment||-3 ~ +1||-7 ~ +2||-7 ~ +2|
|Detection (Target size 1.7m x 0.5m)||675 m||986 m||1298 m|
|Battery Type||Internal Li-ion battery||Internal Li-ion battery||Internal Li-ion battery|
|Max. Battery Life||9.5 hrs @ 22° C||7.5 hrs @ 25° C||7.5 hrs @ 25° C|
|External Power Supply||5V (Type C)||5V (Type C)||5V (Type C)|
|Memory Capacity||32 GB||32 GB||32 GB|
|Ingress Protection Rating||IP67||IP67||IP67|
|Wi-Fi/App||Support (InfiRay Outdoor)||Support (InfiRay Outdoor)||Support (InfiRay Outdoor)|
|Operating Temperature||-10°C ~ +50°C||-20°C ~ +50°C||-10°C ~ +70°C|
|Dimension||160 x 60 x 60 mm||202 x 65 x 64 mm||169 x 60 x 60 m|
|Weight||≤340 grams||≤350 grams||≤350 grams|
