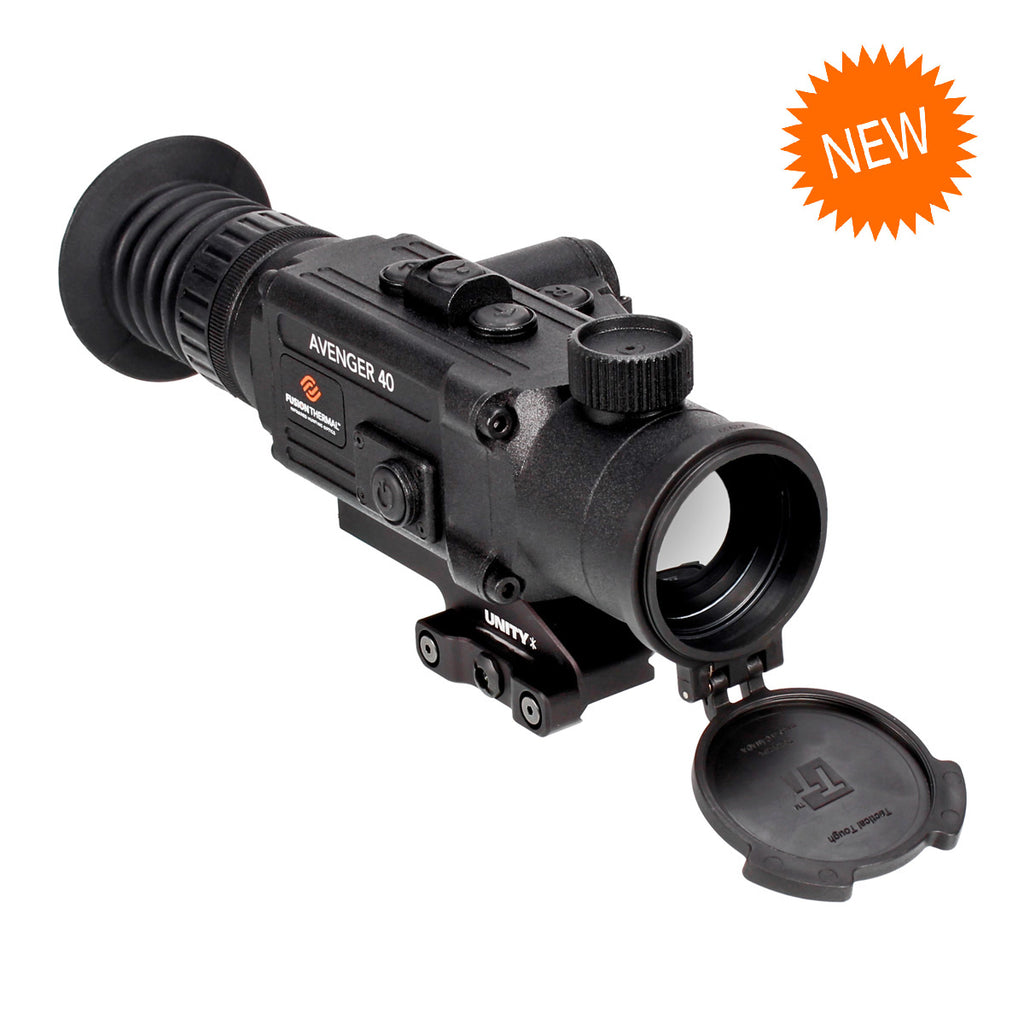

The Fusion Thermal Avenger 40 Thermal Weapon Sight is a premium grade infrared rifle scope that combines a highly advanced thermal optic design with state-of-the-art media capabilities that include video, audio, still photography, and Wi-Fi. The Avenger platform is powered by two Protected 18650 type rechargeable batteries that provide an enormous amount of power for exceptionally long run times and maximum sensor performance. The Avenger 40 features our premium WAVE12 sensor with 384x288 resolution and delivers performance way above its class; often outperforming units that cost thousands more.
At Fusion Thermal we’re obsessed with making our products simple to use, and many people believe our T3 Three Button Control system and our KISS (Keep It Simple Stupid) Menu is simplicity perfected. What you’ll find in the new Avenger Series is a continuation of this great “simplicity first” design tradition, but with the addition of some new high-end features.
We begin with our new electrical power plant. After all if you’re going to juice a power hungry thermal sensor and wifi at the same time you better have as serious power supply. If you don’t, your performance and run time are gonna suffer. To do it all you need power, lots of power, and the Avenger has it. After lots of testing our engineers decided that the protected variant of the 18650 battery design, run in parallel, was the perfect solution. First, there is nothing expensive or proprietary about these batteries, so no need to worry that we’re still selling some special battery five years from now. These batteries are commonly available, inexpensive, and the new circuit protected version makes them one of the safest power supplies available. Second, when run in parallel, this system is like having a summer storm bottled up inside your unit. It has power, lots of power, so you’ll get industry leading run time and the absolute best performance out of your thermal sensor. By the way, to get you up and operational, we include batteries and a charger with your purchase.
Next we added a full media package so if you want to record your heroic moments in the field you’ll find photo, video, and audio capabilities to get the job done.
FUSION THERMAL EXCLUSIVE TECHNOLOGY
T3 Control System – Your Fingers Won’t Get Lost in the Dark. The only thing cooler than the way our T3 – Three Button Control System looks is how easy it is to use. Our highly intuitive three button design with its center tower makes using your thermal scope simple and easy. Every command you need is right at your fingertips, and the Center Tower evenly splits the button control panel, so you always know where your fingers are. We thought this a particularly good thing since you’ll be using it in the dark most of the time. Besides simpler is better, and the T3, well it’s as easy as 1-2-3.
KISS (Keep It Simple Stupid) Menu – You Might Never Read the Manual. You know the phrase, Keep It Simple Stupid, and at Fusion Thermal it’s the reason we can make the industries boldest statement: Our operating menu is so easy to use you’ll likely never read the instructions. Yep, that’s right. Finally, a highly advanced electronic device that doesn’t require a PHD to use. How’d we, do it? It was simple. We don’t care about making our products usable by someone on the other side of the planet, so or menu uses words and not confusing icons. Words that are in English, with instructions that are written for Americans by Americans. Wow, the happiness you find by keeping things simple.
Micro Click Focus – Forget the Dog Collar. Getting your target into focus quickly and easily is a must, and you won’t find a better system than our Micro Click Focus. Our tall tactile focus knob is conveniently located on top of the front lens assembly so it’s easy to reach and easy to find, even in complete darkness. This is critical if you want to keep your eye in the scope and on target, and unlike the dog collar design used by most of our competitors you won’t need to perform a circus act or trash your shoulder just to focus your scope. Plus, you’ll always get your best shot as the micro click adjustments put you exactly on top of the perfect focus point every time. This feature is such a big advancement over the competitive design its often touted as this thing our customers love most about our scopes.
XGEN Alloy Housing – Plastic is for toys. Metal is for tools. It’s a fact, operational heat is the enemy of all thermal devices, and if your thermal can’t get rid of the heat it generates your image quality will suffer. Worse yet is the long-term damage this heat will cause to everything in the device. Your thermal was expensive, and you’ve got to get the heat out to keep it operating properly. This is why we never use plastic or other polymer housings. Plastics and polymers are insulators and aluminum alloys are conductors, one traps heat, and one gets rid of it. It’s that simple. Sure, plastic is ridiculously cheap but it’s a shortcut we refuse to take, and it’s something nearly all our competitors do. Our XGEN (Next Generation Alloy Body) shields your expensive investment in a clad of armor, and our high-end 6082 Structural Aluminum Alloy displaces heat 71,900% better than plastic*. This is a huge difference and reason alone why you should buy one of our products. Think about it, if our competitors are taking a shortcut on something this obvious, what else are they skimping on? It’s your money buy something of value with it.
*Source Sciencedirect.com Thermal Conductivity Coefficients: Plastic & Epoxy Glass Fiber W/(m-K) = 0.25 max as compared to AL 6082 Aluminum W/(m-K) = 180
WAVE Sensor Technology – Spend Less, Get More. Is it possible for one 384 sensor to outperform all other 384s, and even some 640s? Is it possible for one 640 sensor to clearly outperform all other 640s? The answer to these questions is yes, a resounding yes. Don’t be fooled into thinking a sensor resolution specification is the definitive guide to quality, performance and longevity. The difference in what you get from one thermal to the next can be HUGE! Our WAVE sensor technology sets the standard for the industry, and delivers performance that consistently exceeds expectations. The WAVE, Wavelength Area Variation Expansion, is a technology born from our obsession about thermal technology, and why we live by the slogan Perfecting the Vision of Heat. It’s the reason our products outperform others that cost more, sometimes thousands more. Every single pixel on a WAVE sensor is carefully optimized to increase its temperature variation uniformity and sensitivity. This results in an increasingly more precise electrical signal being sent to the display, and why you’ll discover a visual experience that you simply were not expecting.
Its true, you usually get what you pay for, but you don’t always have to pay more to get more. Fusion Thermal’s WAVE technology is an industry game changer, and our products are why people are spending a lot less to get the performance they want. Yes, it can happen, you can get more for your money, and Fusion Thermal is here to make it happen.
Arclight Ultra HD Germanium Lens – Seeing is Believing. The single most expensive and important component of a thermal optic is its germanium objective lens. If you go cheap here it doesn’t matter how good the rest of your components are, the unit will never perform to potential. Arclight Ultra HD Germanium Lenses are not cheap, but they are key to making everything else perform exceptionally well. The purity of the Arclight Lens pushes the limits of technology and perfects the task of funneling infrared rays into the thermal sensor unhindered by distortion. This infrared energy dump unleashes the full potential of our supercharged WAVE sensor. The resulting image quality is exactly as expected, perfection!
Perfecting the Vision of Heat. It’s what we do, it’s who we are.
Premium Tactical QD Scope Mount. To complete the offering each Avenger 40 is equipped with a premium grade tactical scope mount. These mounts are made to exacting standards by a quality US manufacturer. Users should feel free to take the scope on and off as often as desired and should have complete confidence that a precise return to zero will be achieved when scope is reattached. You just need to remember to put the scope back to the same spot on the rail when reattaching.
This product is subject to the International Traffic in Arms Regulations (ITAR). You many not export, re-export, resell, transfer or otherwise dispose of this product to any other country without first obtaining approval from the U.S. Department of State, Directorate of Defense Trade in accordance with the ITAR, Title 22, and Code of Federal Regulations Part 120-130. Diversion contrary to U.S. law is prohibited.
- T3 – Three Button Control System
- KISS (Keep It Simple Stupid) Operating Menu
- WAVE12 – 384×288 Premium 12-Micron Thermal Sensor
- Arclight – 40mm Ultra HD Objective Lens
- XGEN – Next Generation Alloy Housing
- Generous Field-of-View – Perfect for Scattering Hogs
- Micro Click Focus – Fast Click-by-Click Precision Focus
- Blazing Fast 5 Second Start-Up Time
- Premium QD Tactical Scope Mount
- Five Year Transferable Warranty
- Made in the European Union
|Thermal Sensor||384x288, VOx Uncooled (WAVE12)|
|Sensor Pixel Size||12 Micron|
|Objective Lens Diameter||40mm (Arclight)|
|Frame Refresh Rate||50 Hz|
|Field-of-View||360' at 1000 yards (3x optical mag.)|
|Base Level Magnification||3x (before any digital zoom)|
|Digital Magnification||6x & 12x (2-step digital zoom)|
|Display Type/Resolution||Super HD OLED RGBW/3.2 Mil dots|
|Color Palette Modes||4 (White Hot, Black Hot, Red Hot, Predator)|
|Reticle Design Options||7 (plus a "No Reticle" 8th option)|
|Reticle Color Options||5 (White, Black, Red, Green, Blue)|
|Multiple Gun Profiles||Yes (save up to 5 different zeros)|
|Detection Range||Up to 1900 yards|
|Start-Up Time (Cold Start)||5 Seconds|
|Start-Up Time (Power Saver)||Instant|
|Auto Shutdown Battery Saver||Yes (30 min. turn off with no use)|
|On Board Photo / Video Record||Yes (30GB internal hard drive)|
|Video Output||Yes (via Wi-Fi and USB paring function)|
|Battery Type||(2x) 18650 Protected Lithium-ion Rechargeable|
|Expected Battery Life||9+ Hours (typical operation)|
|External Power Supply Capable||Yes (via USB-C port)|
|Recoil Rating||300 Win Mag|
|Front Lens Housing Outside Dia.||49.7mm|
|Length||7.5" (housing front to back)|
|Weight||22.4 oz (without mount or batteries)|
|Warranty||5 year transferable|
