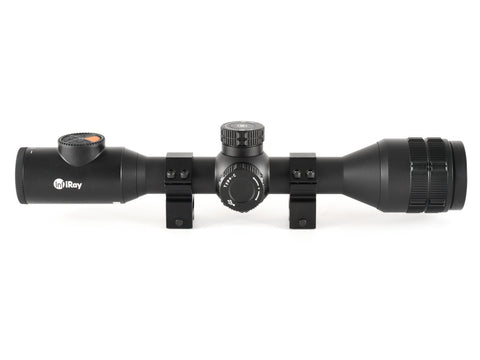

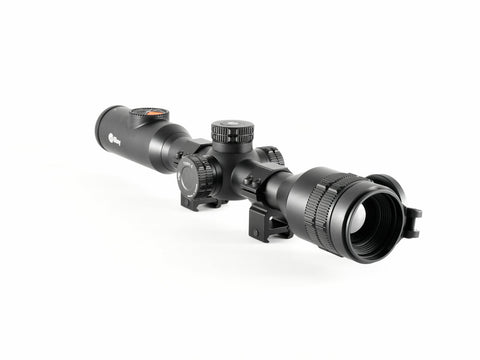

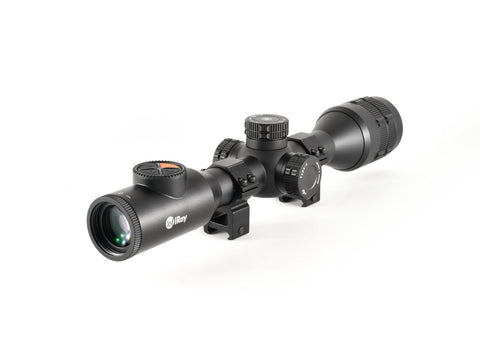

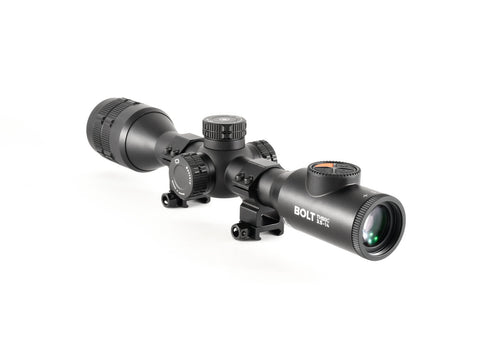

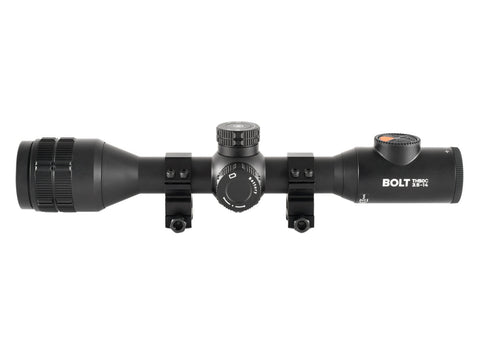

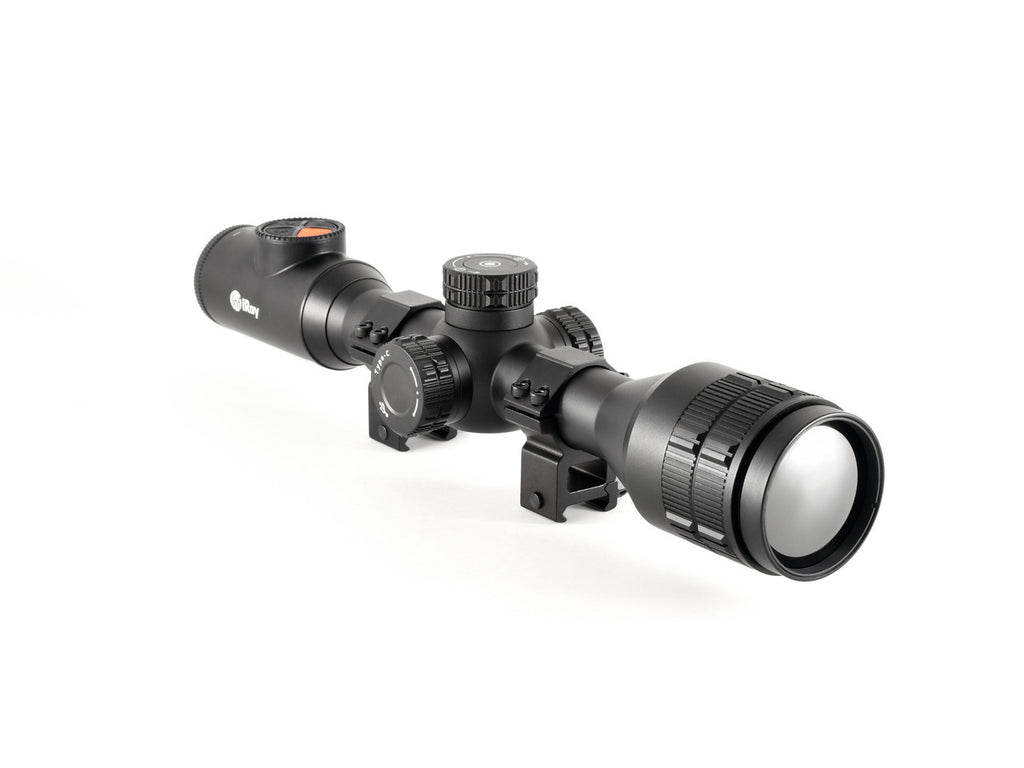

InfiRay Outdoor BOLT TH50C V2 Thermal Weapon Sight

SPECIAL OFFER - Buy a BOLT TH50C V2 and get a ILR-1200-1 Laser Rangefinder for free.  Offer good until June 28, 2024 or while supplies last.  A $799 value.

The InfiRay Outdoor BOLT TH50C V2 expands on the success of the TH50C with the addition of improved audio recording and an optional Bluetooth laser rangefinder module. InfiRay’s industry-leading 12 μm 640×512 Micro II sensor, 1.03-inch large-format 2560×2560 resolution display, and Shutterless Calibration feature are now more powerful than ever, while still maintaining the proven combination of a manual focus lens, dual battery design, and tactile control turret. The BOLT TH50C V2’s traditional look and flexibility of a 30 mm ring mounting interface also guarantee the perfect fit on your favorite hunting rifle.

The BOLT TH50-C V2 features a one-of-a-kind circular 2560x2560 AMOLED display for a more traditional rifle scope look and feel. Inside of a TH50-C V2, the image from an InfiRay 50Hz 12 micron Micro II core is displayed on a crystal clear 2560x2560 ULTRA HD 1.03in display. These components and InfiRay’s proprietary MATRIX III algorithm create an image technically and visually superior to optics with similar specifications. Dual internal 18650 batteries and an optional auxiliary battery provide 10+ hours of run time. The TH50-C V2 also comes standard with 16 Gb of internal memory for hours of video capture.

The BOLT-C Series was designed from the ground up for optimal use on bolt action rifles and other platforms that demand flexible mounting options with increased eye relief. The traditional style of a BOLT housing allows for mounting with standard 30mm rings like a typical day scope.


The BOLT features InfiRay Outdoor's innovative new way to control a thermal optic. Unlike other thermal optics with a turret style controller on one side, the BOLT has a large and easy to find metal turret controller on top. This makes operation easier in the dark and completely ambidextrous. The turret controller also has positive and tactile clicks when twisting, and a positive click when pressing in unlike any other thermal scope on the market. Both the aesthetics and the function of the BOLT demonstrate InfiRay Outdoor's mission to combined the traditional style and feel of a day optic and the advanced technology of thermal imaging.


The TH50C V2 features the industry leading InfiRay 12 micron Micro II core with proprietary MATRIX III image processing, but that is just where the high performance begins. Along with the best sensor and software the TH50C V2 uses a set of optics specifically designed for a 12 micron sensor and a large-format 2560x2560 AMOLED HD display. Dual internal batteries power the BOLT for an incredible 10+ hours, and if you need more runtime the BOLT has an additional battery well for an off-the-shelf 18500 or 18650 battery. The BOLT also supports charging the internal batteries through a USB-C connector while in operation so you are never stuck with a dead battery.


The BOLT-C comes with 32 GB of memory for storing 20,000 images or 24 hours of video. Captured videos and images can be easily transferred to your smartphone at lightning speed via app. The WiFi mode also allows for up to 4 connections to the BOLT-C simultaneously allowing multiple viewers to see the BOLT-C's thermal image in real time. Audio can also be recorded in the app via your smartphone microphone while connected to the app.

Package includes: BOLT TH50C V2 Weapon Sight, Mount, USB Cable, Soft Case, User Manual.


  • iRay Micro II Core 640x512, 12 micron sensor, <25 mK thermal sensitivity
  • 2560x2560 AMOLED Display - a one-of-a-kind circular large-format 1.03-inch circular ultra-high resolution display with 50mm of eye relief
  • Tactical Control Turret with positive response and feel
  • Manual Focus f/1.1 Lens - guarantees the best image, regardless of distance
  • Flexible Mounting Position - mounts with standard 30 mm rings (included)
  • Shutterless Calibration Function - simplifies operation and lowers power consumption
  • 8 Hours Out of the Box - expandable to 10+ hours with optional 18500/18650 battery (not included) and optional Bolt Series Battery Extender (AC-37).
  • USB-C Connectivity - with 32Gb internal memory for video and crystal-clear audio
  • Optional InfiRay Outdoor ILR-1200-1 laser rangefinder module for BOLT with wireless connectivity and up to 1200 yard laser detection range (not included)
  • 1000 G shock resistant (.300 Win / 7mm Mag)


TH50C V2
Resolution 640x512
Pixel Size 12 µm
Frame Rate 50 Hz
Image Processing MATRIX III
Core iRay Micro II 640
Thermal Sensitivity < 25 mK
Objective Lens 50 mm; f/1.1
Optical Magnification 3.5x
Digital Zoom 4x, stepped
Field of View 8.8º x 7.0º
Detection Range 2400 yds
Display Type 1.03" Large-format AMOLED
Display Resolution 2560x2560
Imaging Modes 5 - White Hot, Black Hot, Red Hot, Color, Highlight
Reticle Types 7 - (2 Dynamic, 5 Static)
Reticle Colors Black, White, Red, Green
Mounting System 30mm Rings (included)
Picture-In-Picture Yes
Rangefinder Stadiametric
Optional LRF Bluetooth ILR-1200-1 LRF (Not included)
Eye Relief 50mm
Diopter Range -5 to +3.5
Onboarding Recording Video & Image
Onboard Storage 32 GB
Wireless Connectivity Video and Image via App.
Data/Power Connector USB-C
Power Supply Built-in battery pack, 8 hrs; 18500 battery (+2 hrs), 18650 battery (+3.5 hrs)
Start-Up Time < 10 Seconds, Instant from Standby
Size 14.56" x 3.34" x 2.95"
Weight 33.15 oz
Housing Material T-6061 Aluminum
Operating Temperature -4º - 122º F
Degree of Protection IP67
Max. Recoil 1000 g/s2 (300 Win. / 7mm Mag)
Warranty 5 years
