The Wilcox PVS-14 Bridge/Arm Assembly, P/N 61300G13, can be used to create a dual tube NVG binocular with two AN/PVS-14's.

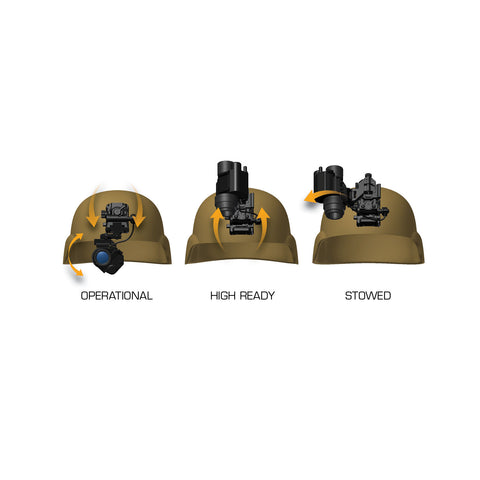

Utilizing the same dovetail shoe interface as seen on Wilcox weapon flip mounts; this arm transitions seamlessly from helmet to weapon. The NVG can be stowed, when not in use, against the helmet keeping the unit low profile. When in the stowed position, the auto on/off switch turns the unit off, conserving battery power. The PVS-14 arm offers left and right eye capability. Fitting into the G24 NVG mount, the PVS-14 arm provides a solid mounting platform and several adjustment points for a precise fit. Dovetail

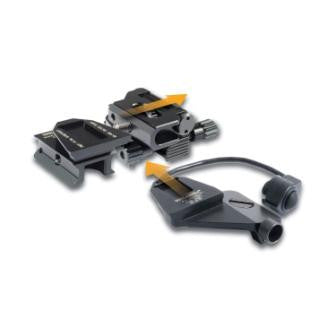

A dual PVS-14 system is assembled by combining a 61308G01 Shoe and 61308G01 folding bridge with a Wilcox PVS-14 Bridge/Arm Assembly P/N 61300G13. The complete Dual Bridge system 61300G13-2X is available.
Dimensions: 3.2" L x 2.7" W x 2.1" H
Weight: 4.8 oz
Interface: Dovetail Shoe Interface
