Sig Sauer ECHO MV50-LRF Thermal Monocular with Laser Rangefinder
The ECHO MV Thermal Monocular is available in three models:
- ECHO MV35 Thermal Monocular, 2-16x 35mm, 640x512, 50 Hz, ≤20 mK, 12.4° FOV
- ECHO MV50-LRF Thermal Monocular 3-24x 50mm, 640x512, 50 Hz, ≤20 mK, 8.7° FOV with integrated Laser Rangefinder
-
ECHO MV50-DV Thermal Monocular 1.5-24x 50mm, 640x512, 50 Hz, ≤20 mK, 17.1° - 8.7° FOV with Dual View (standard & wide view)
Leveraging years of experience creating the industry’s most innovative and rugged technologies, SIG SAUER’s ECHO MV50-LRF is a compact thermal monocular packed with industry-leading features and fully backed by SIG SAUER’s unrivaled Infinite Guarantee™.
The ECHO MV50-LRF is powered by an LWIR 640x512 VGA, 12um 50Hz thermal core with <20mK sensitivity that allows you to identify targets in total darkness with 8 selectable color palettes. Compatible with SIG SAUER’s BDX 2.0 Mobile App, the ECHO MV50-LRF can capture both photo and video that can be viewed or shared in real-time via BDX 2.0.
With an integrated 1000-yd laser rangefinder, the ECHO MV50-LRF can deliver custom ballistic solutions driven by Applied Ballistics® Ultralight. When paired with a compatible ECHO riflescope, the MV50-LRF communicates immediate holdover solutions through the disturbed reticle of your optic.
Boasting one of the longest runtimes in the industry, the ECHO MV50-LRF is capable of drawing power from an internal reserve cell, in addition to a removable 18500 lithium-ion battery. The device ships with (2) 18500 batteries to ensure that you have all the power you need for long nights afield.
Defy The Dark with the ECHO MV50-LRF, an unrivaled force in thermal imaging.
Sig Sauer Electro-Optics Technology:
Infinite Guarantee - SIG SAUER Electro-Optics are guaranteed forever. It's an unlimited lifetime guarantee.Ballistic Data Exchange 2.0 - Ballistic Data Exchange is a rangefinder and riflescope system that uses your ballistics, environmental conditions and Bluetooth to illuminate the exact holdover dot. BDX 2.0 is the Software Update that includes a new easy mode for quick BDX setup out of the box, including: BDX kits come paired and bonded. BDX Quickbond™ system gives users the ability to bond two BDX enabled devices without the smartphone app. BDX equipped KILO™ rangefinders preloaded with ballistic groups for centerfire rifles, muzzleloaders and crossbows. 100% compatible with BDX smartphone app to access the advanced BDX features in configuration options.
LightWave DSP™ - Lightwave DSP (Digital Signal Processing) engine leverages HyperScan – an advanced power management technique that provides the fastest refresh rate in scan mode (4 times per second) even at distances over a mile. Our DSP engine uses the latest generation Field Programmable Gate Array (FPGA) running sophisticated signal processing algorithms to reduce false positives while finding weak or distant targets.
Hyperscan™ - Features the fastest, most accurate range acquisition algorithms by analyzing targets 4 times per second and displaying the results on stationary or moving targets within a quarter of a second.
LensArmor™ - Abrasion-resistant lens coatings for extreme durability ensure the lenses on your scope will stay sharp, bright, and clear.
Motac™ - Activated through motion sensing technology, MOTAC immediately powers up illumination when it senses motion and powers down when it does not in order to extend battery life.
Bluetooth - Establish a wireless connection between your compatible SIG SAUER optic device and smart phones or Kestrels to maximize the functionality of your optic. Manipulate device setting, load new ballistic profiles, and transfer data quickly and easily with BDX 2.0 mobile app.
Included in the box:
- ECHO MV Thermal Monocular
- EVA Zippered Case
- (2) 18650 Lithium-ion Rechargeable Batteries
- USB-C to USB-C Data Cable
- Lens Cloth
- Quick Reference Instructions
ITAR Control Statement
This product is subject to the International Traffic in Arms Regulations (ITAR). You many not export, re-export, resell, transfer or otherwise dispose of this product to any other country without first obtaining approval from the U.S. Department of State, Directorate of Defense Trade in accordance with the ITAR, Title 22, and Code of Federal Regulations Part 120-130. Diversion contrary to U.S. law is prohibited.
- Integrated 1000-yd Laser Rangefinder and Applied Ballistcs® Ultralight
- 3-24x Digital Zoom
- LWIR 640x512 VGA 12µm 50Hz thermal core with ≤20mK sensitivity
- Full Backed by SIG SAUER's Infinite Guarantee™
- 8 Selectable Color Palettes
- Record still photos and video with audio
-
BDX 2.0 enabled, including Applied Ballistics Ultralight with complete AB bullet
database, full on-board environmental sensor suite, and live video streaming.
- Compatible with BDX™ Capable Thermal Riflescopes

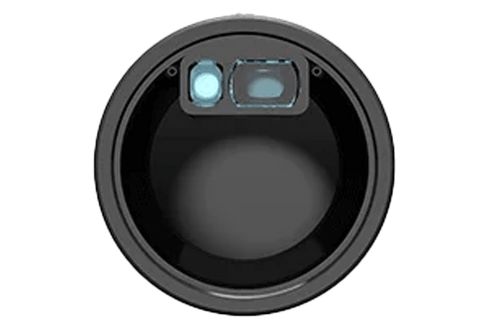

- LIGHTWAVE™ DSP 1000 yard laser rangefinder integrated into the objective for ultra-compact carry.
- Rechargeable and removable 18650 lithium-ion batteries with 10-hour runtime on a single charge.
- Configure settings and download media with the BDX App.
- Record photos and videos to internal 32GB solid-state storage. Capture every thrilling moment in crisp detail, no matter where your adventure takes you.
- Ships with (2) 18650 batteries, USB-C cable, flip back lens cover, and EVA zippered case.
| Specifications | MV50-LRF |
| Magnification | 3-24x |
| Focal Length | 50mm |
| Resolution | 640 x 512 |
| Pixel Pitch | 12 µm |
| Thermal Sensitivity (NETD) | ≤ 20mK |
| Frame Rate | 50 Hz |
| Angular FOV | 8.7° |
| Display Type | OLED |
| Display Resolution | 1024 x 768 |
| Color Palettes | 8 |
| Reticles | N/A |
| BDX Enabled | Yes |
| Ballistic Profiles (BDX App) | 25 |
| Video/Audio Recording | Yes |
| Image Capture | Yes |
| Media Storage | 32 GB |
| Communications | Wi-Fi / Bluetooth |
| Laser Rangefinder | Yes |
| Max. Measuring Range | 1000 yds |
| Laser Safety Class | Class 3R |
| Mount Type | None |
| Length | 7.6" |
| Overall Diameter | 2.4" |
| Weight (w/o batteries) | 19.8 oz |
| Battery | (2) 18650 |
| Runtime | 10 hours |
| Carry Case included | Yes |
| Waterproof rating | IP67 |
| Warranty | Lifetime |
