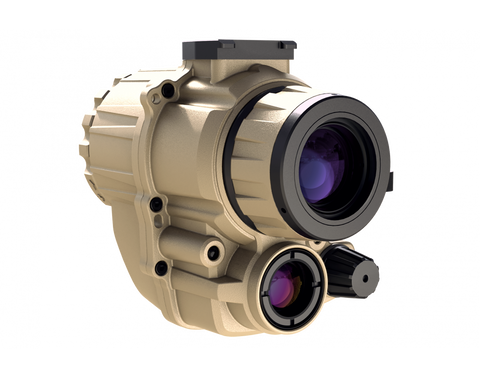

AGM F14 Fusion Night Vision & Thermal Tactical Monocular

The AGM F14 Fusion Night Vision Tactical Monocular combines I² and thermal imaging technologies. The F14 bi-spectrum monocular is a device that can observe and search targets at night, in darkness, under extreme environments such as smoke, fog, rain, snow, etc. It can be widely applied to scenarios including patrol, search and rescue, drug interdiction, and suspect apprehension. Due to its waterproof capability the device performs well even in severe weather conditions and challenging environments.

The AGM F14 can be outfitted with either a Gen 2+ or Gen 3 highperformance image intensifier tube (IIT) and 12μm high-sensitivity thermal detector with 640x512 resolution. The F14 can be used as hand-held device or mounted on a helmet. The user-friendly interface, comfortable and ergonomic operating controls makes adoption and application of the device incredibly simple. The device offers different variants of image view: thermal, I² night vision, and enhanced fusion image that can be easily adapted depending on different environmental conditions. The F14 is also equipped with manual gain control, which adjusts the image brightness, providing the highest possible image quality even in changing light conditions. The monocular uses two 18650 rechargeable Lithium batteries in the external holder for up to 8-hours of operating time in fusion image mode. In I² night vision mode device can run more then 60 hours.

The F14 is available in two models:

  • F14-3AP with thermal 640x512 (50Hz) channel fused with Gen 3 P43-Green Phosphor IIT; and
  • F14-3APW with thermal 640x512 (50Hz) channel fused with Gen 3 P45-White Phosphor IIT.

Equipment described herein is subject to US export regulations and may require a license prior to export. Diversion contrary to US law is prohibited.

  • Bi-spectrum image fusion and object highlight
  • Detail enhancement and target recognition
  • Selection of thermal view channel, IIT night vision channel, or both combined with multiple fusion modes switchable
  • 12 µm, 640x512 px high-sensitivity thermal detector
  • Digital zoom in thermal channel
  • Night vision channel available in either Green Phosphor or White Phosphor IIT tubes
  • Azimuth and Pitch/Inclination indication
  • Brightness and contrast image adjustment
  • Extra large exit pupil diameter (15mm)
  • Low power consumption - up to 8 hours continuous running in fusion mode and more than 60 hours operation in IIT night vision mode
  • Aviation plug for external power supply and video output
  • Waterproof
  • Limited 5-year warranty

Package Includes: Monocular, Battery Holder, Two 18650 Lithium Batteries, Helmet Support Kit, Video Cable, Hard Carrying Case, User Manual.

Model F14-3AP F14-3APW
Detector Type 12 µm VOx Uncooled 12µm VOx Uncooled
Resolution 640 x 512 px 640 x 512 px
Refresh Rate 50 Hz 50 Hz
Response Waveband 8 µm to 14 µm 8 µm to 14 µm
Thermal Lens Focal Length 16 mm 16 mm
Field of View (HxV) 25.8° x 19.1° 25.8° x 19.1°
Digital zoom 1x, 2x, 4x, 8x 1x, 2x, 4x, 8x
Observation Distance (6' object) 1,500 m 1,500 m
FFC (Flat Field Correction) Manual Manual
Palettes Black Hot, White Hot, Orange Hot, Outline, Highlighting, Thermal Image, Breath Black Hot, White Hot, Orange Hot, Outline, Highlighting, Thermal Image, Breath
Video Output Yes (via aviation plug) Yes (via aviation plug)
Night Vision Sensor Gen 3 Advanced Performance IIT - Green Phosphor Gen 3 Advanced Performance IIT -White Phosphor
NV Module Manual Gain Control Yes Yes
NV Module Lens Focal Length 25 mm 25 mm
NV Module Field of View 40° 40°
Optical Magnification 1x 1x
Diopter Adjustment -3.5 to +2.5 dpt -3.5 to +2.5 dpt
Exit Pupil Diameter 15 mm 15 mm
Eye Relief 25 mm 25 mm
Bright Light Cut-Off Yes Yes
Infrared Illuminator Yes Yes
Battery Type Two 18650  rechargeable battery (external battery holder) Two 18650 rechargeable battery (external battery holder)
Battery Operating Time > 8 hours continuous running (fusion image mode); > 60 hours continuous running (NV only) > 8 hours continuous running (fusion image mode); > 60 hours continuous running (NV only)
Battery Capacity Display Yes Yes
External Power 5 VDC/2 A, (via aviation plug) 5 VDC/2 A, (via aviation plug)
Protection Level IP67 (Waterproof) IP67 (Waterproof)
Working Temperature ºC (ºF) -40°/+60° (-40°/+140°) -40°/+60° (-40°/+140°)
Length x width x height (in) 3.9 x 2.8 x 3.4 in 3.9 x 2.8 x 3.4 in
Weight (w/o batteries)  0.38 kg (0.84 lb)  0.38 kg (0.84 lb)
Warranty Limited 5 years Limited 5 years
