NightRide Sentinel 640

  • Sale
  • Regular price $4,600.00

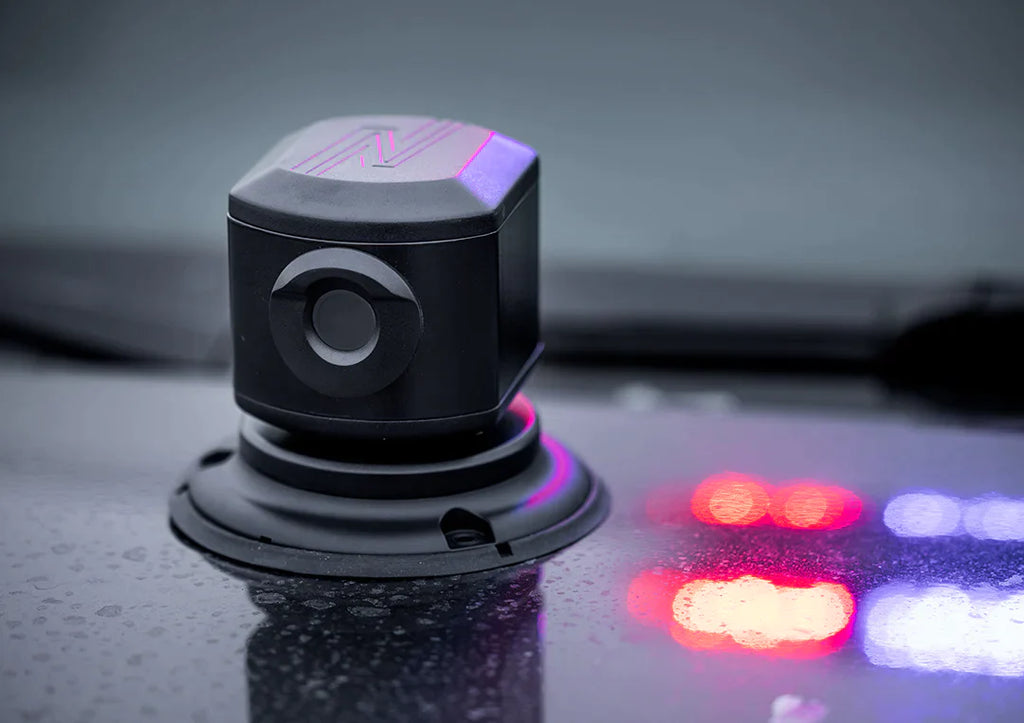

NightRide Sentinel 640 Vehicle Mounted Thermal Camera System

YOUR ALL SEEING EYE - When every second counts and live are on the line, first responders need every tool possible to enhance their operational performance and keep them safe.  With 360° panning, the Sentinel vehicle mounted high resolution thermal camera provides full situational awareness, even in complete darkness and severe weather, making it your all-seeing eye.

ALL-WEATHER WEAR - NightRide cameras are designed for the elements, with an IP67 rated anodized aluminum enclosure that is resistant to wind, water and dust.

Applications include pedestrian/animal detection, search + rescue, firefighting, law enforcement and security.

  • High resolution
  • Fixed focus
  • Compact size (100mm x 95mm x 100mm)
  • Low profile sleek design
  • Flexible mechanical interface
  • Fender, roof or light bar mounting
  • Wi-Fi hotspot connection to display device
  • Remote control 360° pan
  • Always recording /event recording
  • Remote software upgrade capabilities



Vehicle Specific Mounts No
Mounting Fender, Roof, Lightbar
Pan/Tilt Remote Control
Sensor Resolution 640 x 512 Uncooled Microbolometer
Refresh Rate 25 Hz
Sensor Pixel Size 17 µm
Detection Range 720 yds
Recognition Range 200 yds
Identification Range 100 yds
Lens (Focal length) 13 mm
Field of View 28° (H)
Optical Magnification None
Digital Magnification 8X
Optical Focus Range 6m to infinity
Focusing Mechanism Fixed
Power Consumption 3W
Power Requirements 12 - 16 VDC
Protection Level IP 67
Lens Heater Yes
Operating Temperature Range -40°F to +140°F
Length x width x height (in) 7 1/4" x 6 3/8" x 6 3/4"
Weight  5.5 lbs
Warranty Limited 3 years
