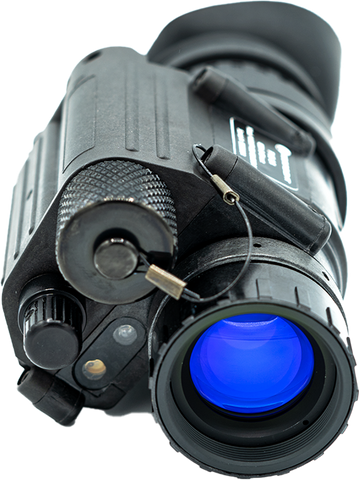

The enormously popular Armasight PVS-14 Gen 3 Pinnacle Multi-Purpose Night Vision Monocular is a significant step-up from the Bravo option, with significantly improved performance and picture quality. The Gen 3 Pinnacle PVS-14 NV Monocular comes with your choice of Pinnacle image intensifier tubes with a minimum of 2000 FOM, or premium Pinnacle 2376 tubes which are guaranteed to have a minimum of 2376 FOM. All Pinnacle tubes are offered exclusively in Ghost White Phosphor, the preferred choice of elite special operators across the globe.
The PVS-14 is compatible with a variety of accessories that expand its versatility, allowing for use as a handheld device, head- or helmet-mounted night vision monocular, in addition to being adaptable for use with many camera systems.
With an integrated infrared (IR) illuminator, you can supplement the available light for more detailed images at closer distances. The Armasight PVS-14 features manual gain control, allowing you to adjust the brightness to your personal preference.
Complete your mission with confidence using the battle-proven Armasight PVS-14.
- PVS-14 Night Vision Monocular with Pinnacle White Phosphor Image Intensifier Tubes
- Lens Cap
- Sacrificial Window
- Demist Shield
- Tethering Cord
- J-Arm Helmet/Head Mount Adapter
- Head Mount Assembly ("Skullcrusher")
- Product Manual
- Lens Paper
- Soft Carrying Case
- AA Battery
3 year limited warranty with registration
More about Armasight Generation 3 Pinnacle / Pinnacle 2376 Image Intensifier Tubes
The best combination of price and performance. Our Pinnacle Image Intensifier Tubes have almost 50% less imperfections than our Bravo tubes, as well as a minimum of 2000 FOM. Zone 1 is kept completely clear of blemishes, giving you a great picture of your target of interest. Designed for a more experienced end-user, NV systems with Pinnacle IITs can be found in the hands of law enforcement, hunters and enthusiasts.
Our Pinnacle 2376 Image Intensifier Tubes share the same impeccable picture quality as our Pinnacle Elite tubes, but guarantee a minimum of 2376 FOM.
|Image Intensifier Tube Generation||Gen 3 Thin-Filmed Manual Gain Control|
|Resolution (lp/mm)||64-81 lp/mm|
|Zone 1 Spots Maximum Allowed||No spots of 0.003" or greater allowed|
|Zone 2 Spots Maximum Allowed||0 - 0.009" to 0.012" / 1 - 0.006" to 0.009" / 2 - 0.003" to 0.006"|
|Zone 3 Spots Maximum Allowed||0 - 0.009" to 0.012" / 2 - 0.006" to 0.009" / 3 - 0.003" to 0.006"|
|Manual Gain Control||Yes|
|Bright Light Cut-Off||Yes|
|Infrared Illuminator||Yes (Built-in)|
|IR Indicator||Yes (in FOV)|
|Lens System||f1.2; 27mm|
|Field of View (degrees)||40°|
|Focus Range (m)||0.25m to infinity|
|Diopter Adjustment||-6 to +2 dpt|
|Power Supply||1x AA (1.5V) battery|
|Battery Life (hours)||60 hours|
|Low Battery Indicator||Yes (in FOV)|
|Operating Temperature||-51° C to +49° C (-60° F to +120° F)|
|Storage Temperature||-51° C to +85° C (-60° F to +185° F)|
|Dimensions (mm/in)||114 x 51 x 57mm / 4.5 x 2.0 x2.25in|
|Weight (kg/oz)||0.35kg / 12.4oz|
|Warranty||3 years w/ registration|
