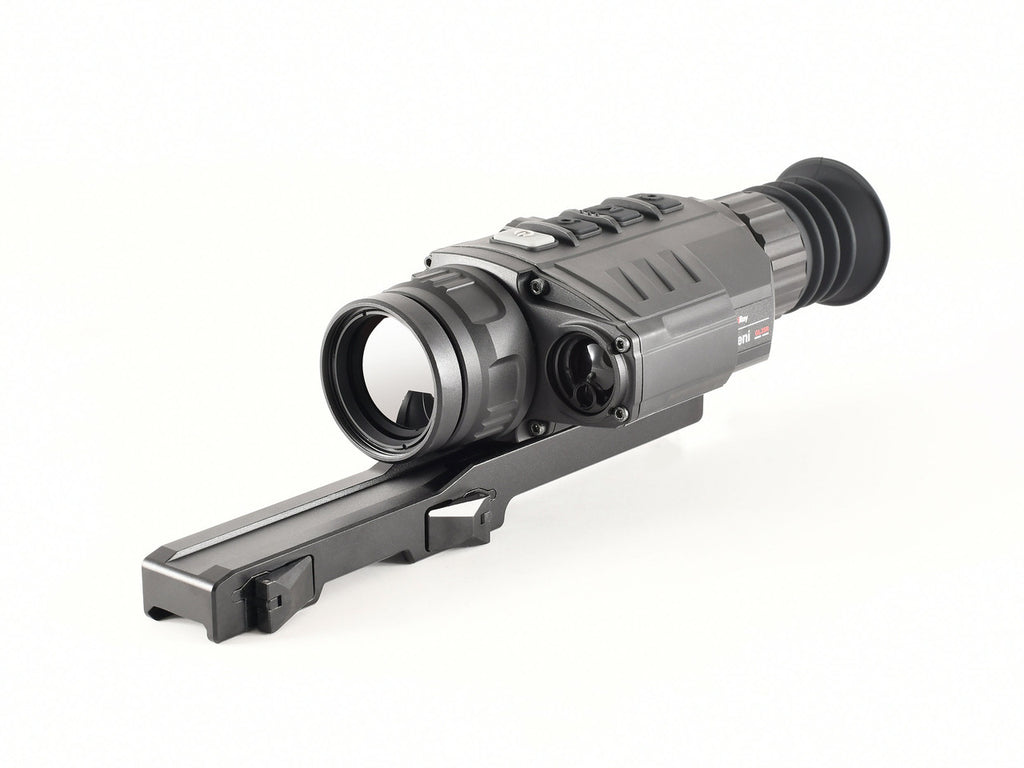

InfiRay Outdoor RICO G-LRF Thermal Weapon Sight

The RICO G-LRF is the first addition to InfiRay Outdoor’s family of Rugged Infrared Compact Optics (RICO) to include an integrated laser rangefinder. Designed as a more compact and affordable alternative to it’s full size RICO Mk1 counterpart, the RICO G-LRF is available in two models:

  • InfiRay Outdoor RICO G-LRF 384 3X 35mm (GL35R); and
  • InfiRay Outdoor RICO G-LRF 640 3X 50mm (GH50R).

Although smaller in size, the RICO G-LRF still maintains many familiar RICO Mk1 characteristics including a 4 button layout, compatibility with the AD-RQD quick release mount, similar software style and menu functions, high speed germanium objective optics, and an HD OLED display. In addition to the features it carries over from the Mk1, the G-LRF brings never-before-seen features to market for InfiRay Outdoor including a new high density 26650 battery configuration, and InfiRay Outdoor’s newly integrated high performance 905nm LRF micro-module. This advanced class 3R LRF module uses the latest technology in laser ranging to decrease physical laser input receiver size while maintaining accuracy and range capabilities of modules that are much larger, heavier, and more power hungry.

Other notable design characteristics to achieve the desired smaller stature are a smaller chassis, shorter eyepiece focal length, barrel-style manual focus objective optics, and a high density battery configuration. All these features combined make the RICO G-LRF an excellent option for hunters that need no more than 4(GH50R) or 7 (GL35R) hours per battery swap and require decreased size and an integrated rangefinder. A single 26650 battery was chosen to power the system as a space saving and high value alternative to multi battery designs. 26650 style batteries are commercial off the shelf and widely available across the globe from premium battery manufactures such as NITECORE.

The RICO G-Series LRF seamlessly blends InfiRay Outdoor’s industry-leading 12μm detector technology, a built-in laser range-finding module and an intuitive user interface in a single product. The G-Series LRF also supports image and video capture, wireless data transmission, electronic compass, multiple reticles, and a 4-7 hour run-time, guaranteeing it’s never been easier to detect, range, and connect on your next hunt.

  • iRay Micro II Core
  • HD display
  • Built-in Laser Rangefinder
  • Advanced Image Correction
  • Automatic Image Optimization
  • Picture in Picture
  • RQD Quick Release Mount
  • 32Gb internal memory
  • 1000 G shock resistant (300 Win / 7mm Mag)

Package includes: Thermal Weapon Sight, Mount, USB Cable, Hard Case, User Manual

Model GL35R GH50R
Resolution 384x288 640x512
Pixel Size 12 micron 12 micron
Frame Rate 50 Hz 50 Hz
Core InfiRay Micro II 384 InfiRay Micro II 640
Thermal Sensitivity < 40mK
Objective Lens 35 mm; f/1.0 50 mm; f/1.1
Magnification 3x 3x
Digital Zoom 4x, stepped 4x
Field of View 7.5º x 5.7º 8.8° x 6.6°
Detection Range 1750 yds 2400 yds
Display Resolution 1024x768 1024x768
Focusing Mechanism Manual Focus Manual focus
Imaging Modes White Hot, Black Hot, Red Hot, Color, Highlight White Hot, Black Hot, Red Hot, Color, Highlight
Reticle Types 7 (2 Dynamic, 5 Static) 7 (2 Dynamic, 5 Static)
Reticle Colors Black, White, Red, Green Black, White, Red, Green
Mounting System Picatinny MIL STD-1913 Rail Quick-Detach Mount Picatinny MIL STD-1913 Rail Quick-Detach Mount
Picture-In-Picture Yes Yes
Rangefinder Internal Laser RF Internal Laser RF
Eye Relief 40mm 48mm
Diopter Range -4 to +4 -4 to +4
Onboarding Recording Video and Image, no audio Video and Image, no audio
Wireless Connectivity Video and Image via App. Video and Image via App
Data/Power Connector USB-C USB-C
Storage Capacity 32 GB 32 GB
Data/Power Connector USB-C USB-C
Power Supply 26650 Battery / USB-C External 26650 Battery / USB-C External
Run Time  Up to 7 hours Up to 7 hours
Start-Up Time < 10 Seconds, Instant from Standby < 10 Seconds, Instant from Standby
Size 8.85" x 3.93" x 2.42" 8.85" x 3.93" x 2.42"
Weight 23.9 oz (with batteries) 25.71 (with batteries)
Operating Temperature -4º - 122º F -4° - 122° F
Housing Material Polymer Polymer
Degree of Protection IP67 IP67
Max. Recoil 1000 g/s2 300 Win. / 7mm mag 1000 g/s2 300 Win./ 7mm mag
Warranty 5 years 5 years
