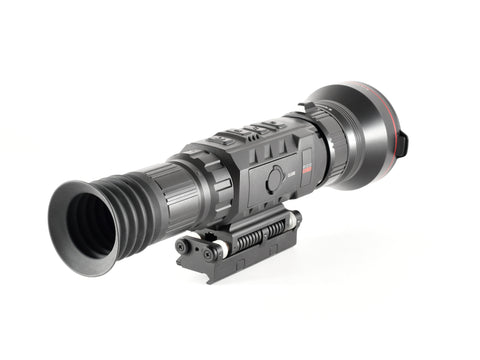

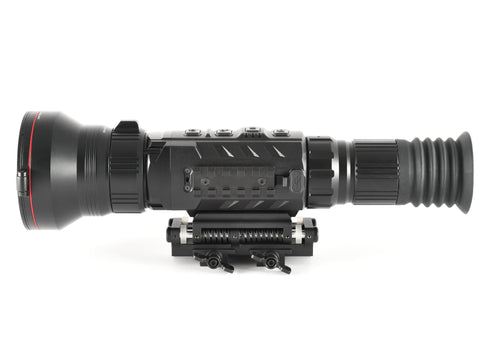

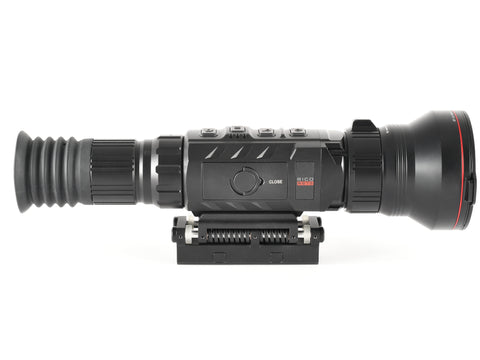

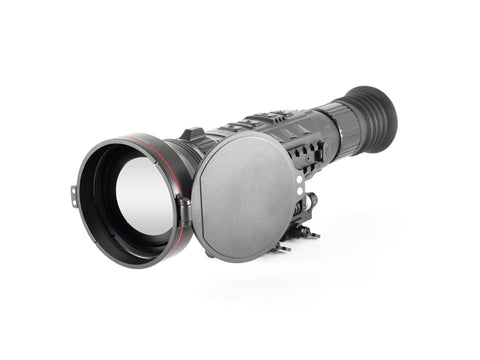

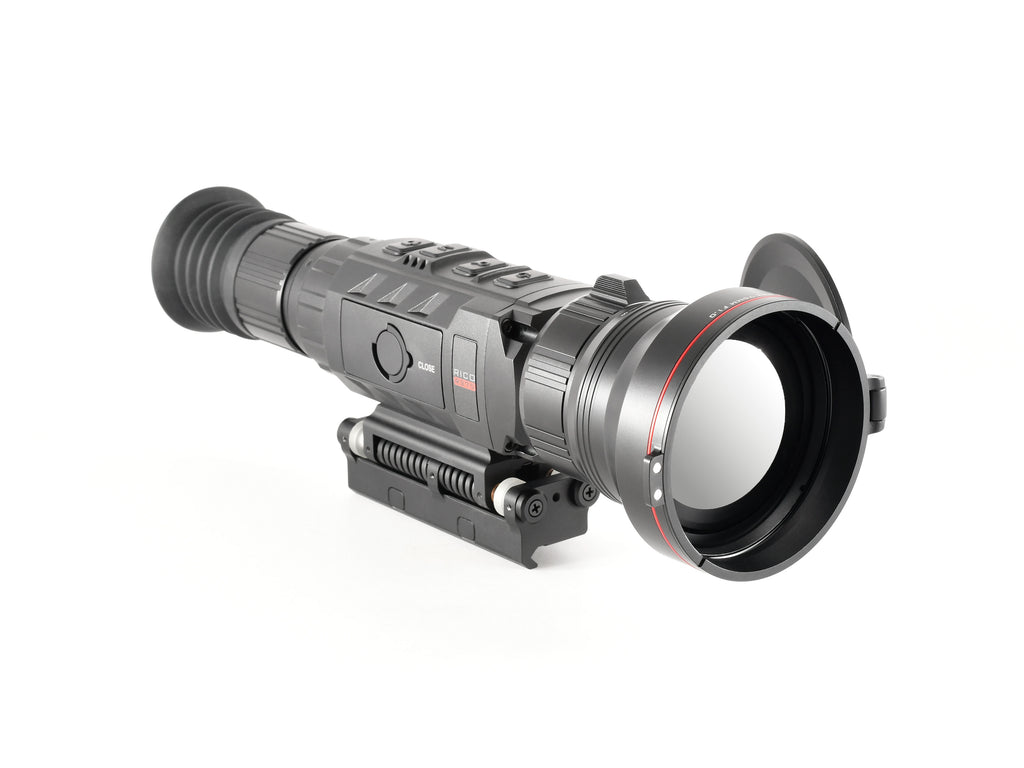

RICO HD 1280 2x 75mm Thermal Weapon Sight

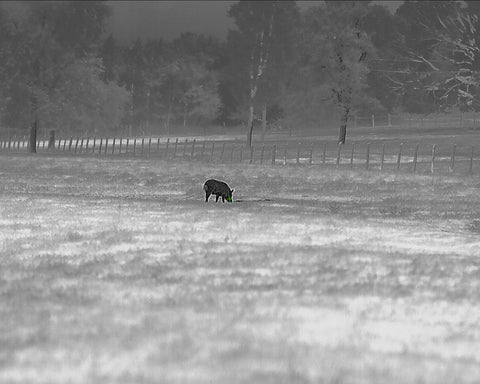

 The InfiRay Outdoor Rugged Infrared Compact Optic (RICO) HD RS75 is the first commercially available 1280x1024 resolution thermal weapon sight ever created. You read that right, the legendary thermal image quality produced by a High Definition (1280x1024) thermal sensor is finally commercially available to night hunters in the form of an advanced weapon sight. The RICO HD RS75 has an incredible 1,310,720 pixels processed by InfiRay’s proprietary MATRIX III algorithm to create an image so clear, it is almost unbelievable.

It’s been more than a decade since the leap from 320x240 resolution to 640x512 resolution thermal sensor technology, but the inexorable advancement to 1280x1024 resolution has been approaching quietly in the background. As night hunters we have always wanted more performance out of our optics, but the problem was we couldn’t do that with existing technology which had reached its limits. Through years of research and development by an engineering team of over 500 devoted to sensor innovation, InfiRay Outdoor has unleashed the capabilities that night hunters have only dreamed of.

The RS75 maintains many familiar RICO Mk1 characteristics including a 4 button layout, similar software style and menu functions, and high speed germanium objective optics. In addition to the tried and true features of the MK1 line, InfiRay Outdoor added several highly requested features to the RS75 including 128GB of internal storage space, an upgraded 2560x2560 AMOLED display, an enhanced microphone, and a recoil mitigating mount for increased durability.

CRYSTAL CLEAR AUDIO AND VIDEO

The RICO HD offers crystal clear onboard audio recording to compliment captured videos. Increased audio clarity over previous RICO generations allows you to capture a quiet whisper before the shot or the report of a bullet impact hundreds of yards away.

PREMIUM OPTICS AND NEAR-EYE DISPLAY

One of the first things you notice when you look through the RICO HD RS75 is the optical clarity. The eyepiece offers edge to edge image perfection when paired with the 1.03" 2560x2560 AMOLED microdisplay. The RS75's orthoscopic eyepiece has also been redesigned with premium components specifically selected to achieve low distortion and edge to edge clarity. This redesigned eyepiece offers a more forgiving eyebox for a more comfortable cheek weld and 60mm of eye relief.

UNLOCKED NEXT GENERATION CAPABILITIES

What does it take to unlock the next level of thermal imaging? Four times the resolution of 640 devices, 1,310,720 pixels, a 12 degree horizontal field of view, and a detection range of 3,600 yards make the RICO HD the ultimate thermal weapon sight for any distance. No longer do night hunters have to sacrifice detection range or field of view, you can have it all in one scope for close range, mid range, or longer range shots.

To get the most out of the first 1280x1024 resolution weapon sight, InfiRay Outdoor built in a suite of best-in-class features including a rail mounted laser rangefinder and compatibility with a custom reticle generator app. Never before has a weapon sight enabled the skilled shooter to be as accurate at night as they are in daylight conditions, until now!

  • 1280x1024 12µm Sensor
  • iRay Micro II Core

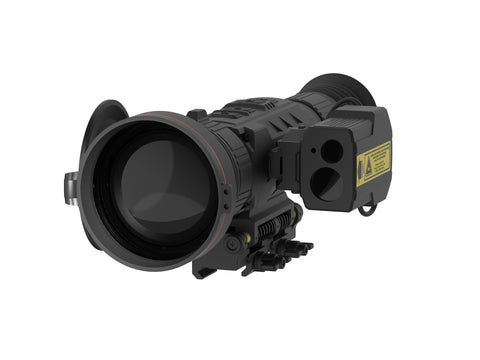

  • ILR-1000 Laser Rangefinder included
  • AMOLED display
  • Advanced Image Correction
  • Automatic Image Optimization
  • Picture in Picture
  • 126GB internal memory
  • Aluminum Alloy housing
  • 1000 G shock resistant (300 win./7mm mag)
  • 6 hours run time

Package includes: Thermal Weapon Sight, ILR-1000 Laser Rangefinder, Mount, USB Cable, IBP-1 Battery Packs (2), Battery Recharger, Hard Carry Case,  User Manual

RS75
Resolution 1280x1024
Pixel Size 12 µm
Frame Rate 30 Hz
Image Processing MATRIX III
Core iRay Micro II 1280
Thermal Sensitivity ≤ 25 mK
Objective Lens 75 mm; F1.0
Optical Magnification 2x
Digital Zoom 16x
Field of View 11.7º x 9.4º
Detection Range 3600 yds
Display Type AMOLED
Display Resolution 2560x2560
Imaging Modes White Hot, Black Hot, Red Hot, Rainbow, Highlight
Reticle Types 7 (2 Dynamic, 5 Static)
Reticle Colors Black, White, Red, Green
Mounting System Picatinny STD-1913 rail
Picture-In-Picture Yes
Rangefinder ILR-1000 LRF (included)
Eye Relief 60mm
Diopter Range -3 to +3
Onboarding Recording Video & Image, no audio, 128 GB
Wireless Connectivity Image/video via App.
Data/Power Connector USB-C
Power Supply IBP-1 Battery x2, 4+ hours
Start-Up Time

<10 Seconds, Instant from Standby

Size 12.55"x3.93"x3.34"
Weight 44.9 oz
Housing Material T-6061 Aluminum
Operating Temperature -4º - 122º F
Ingress Protection IP67
Max. Recoil 1000 g/s (300 Win. / 7mm Mag)
Warranty 5 years
